fern fox duo:
Off-Grid adventures for Two

View ready-to-adventure vehicles

Capability built around you

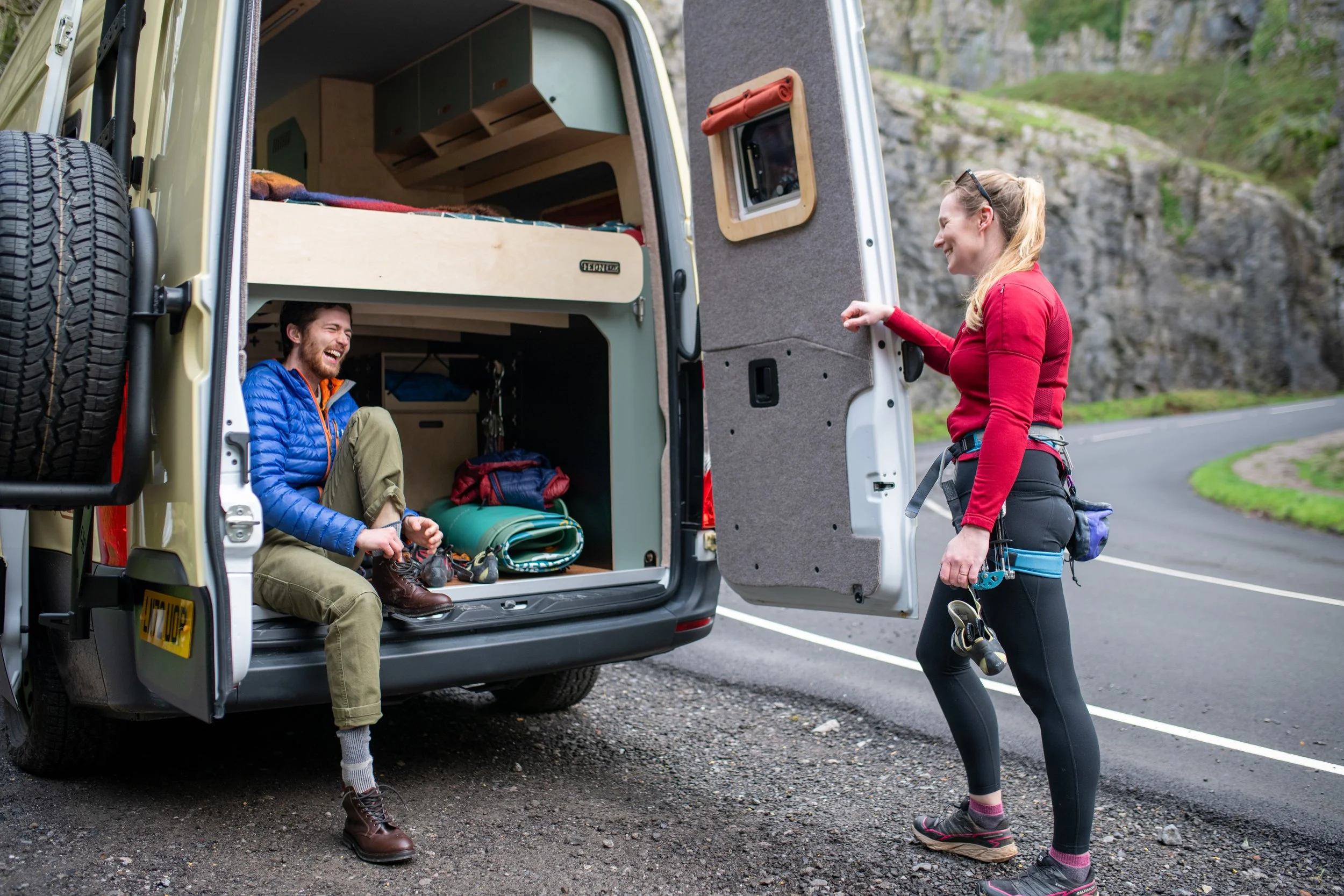

Two climbers getting ready at the rear of a Fern campervan, showing the spacious and adaptable garage storage for outdoor gear and adventure travel.

industry-leading features to make life easy on the open road, whatever kind of traveller you are.

Here’s how:

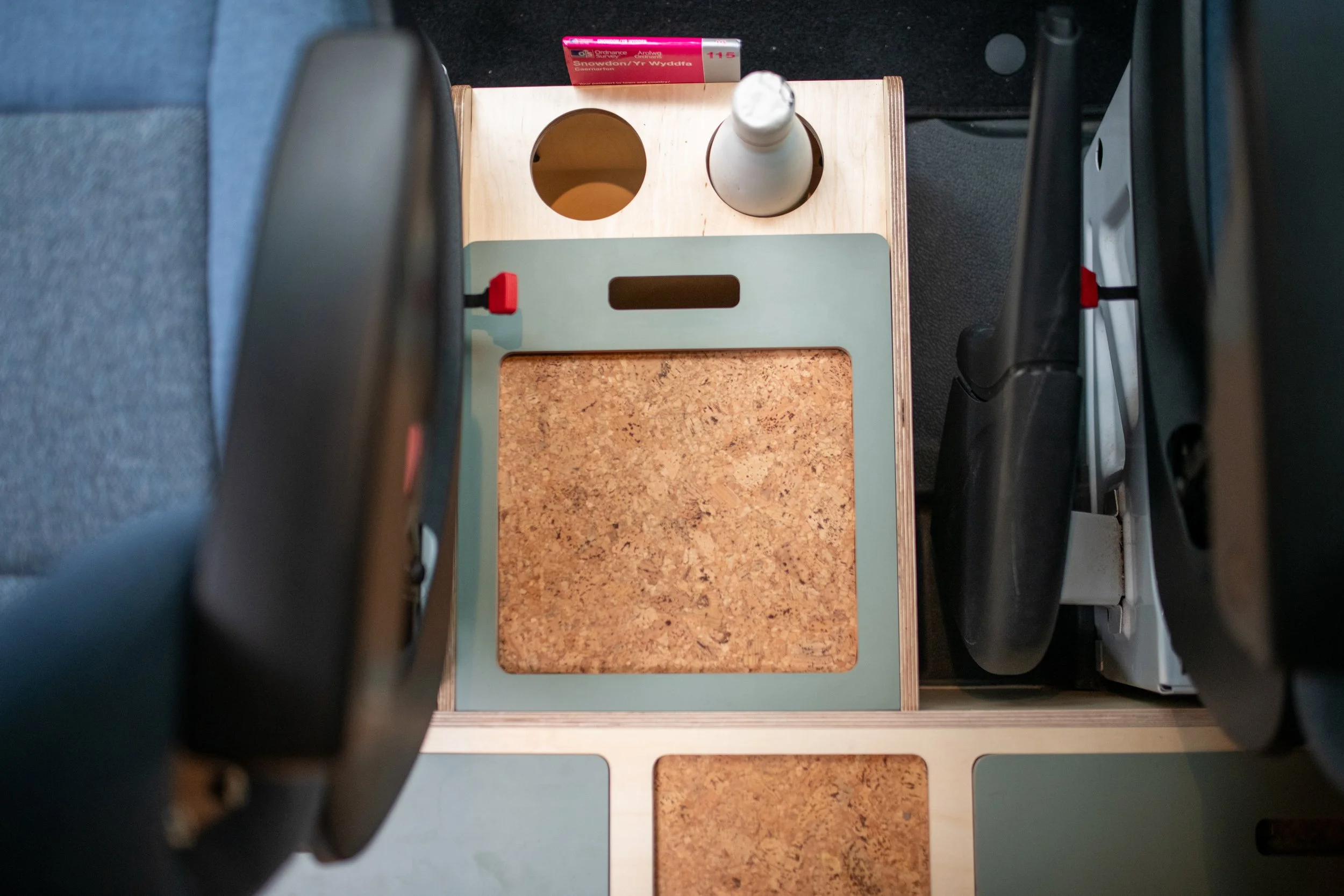

  • Central storage box with cork lid and twin cup holders between the front seats of a Fern campervan, keeping everyday items tidy and close to hand.

    For All-Day Drivers

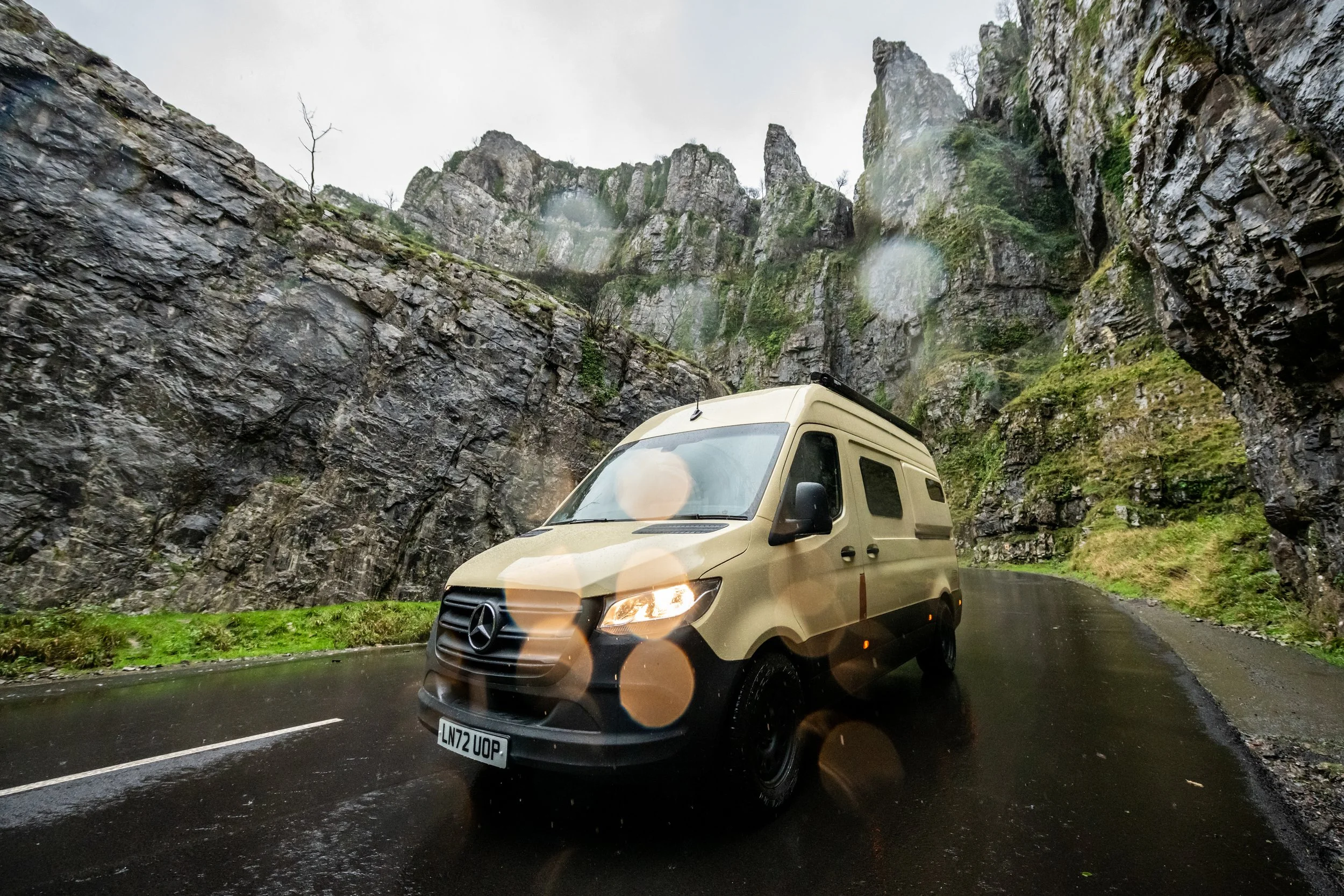

  • Fern campervan driving through a steep-sided gorge on a wet winter day, demonstrating confident all-weather touring.

    For Winter Travellers

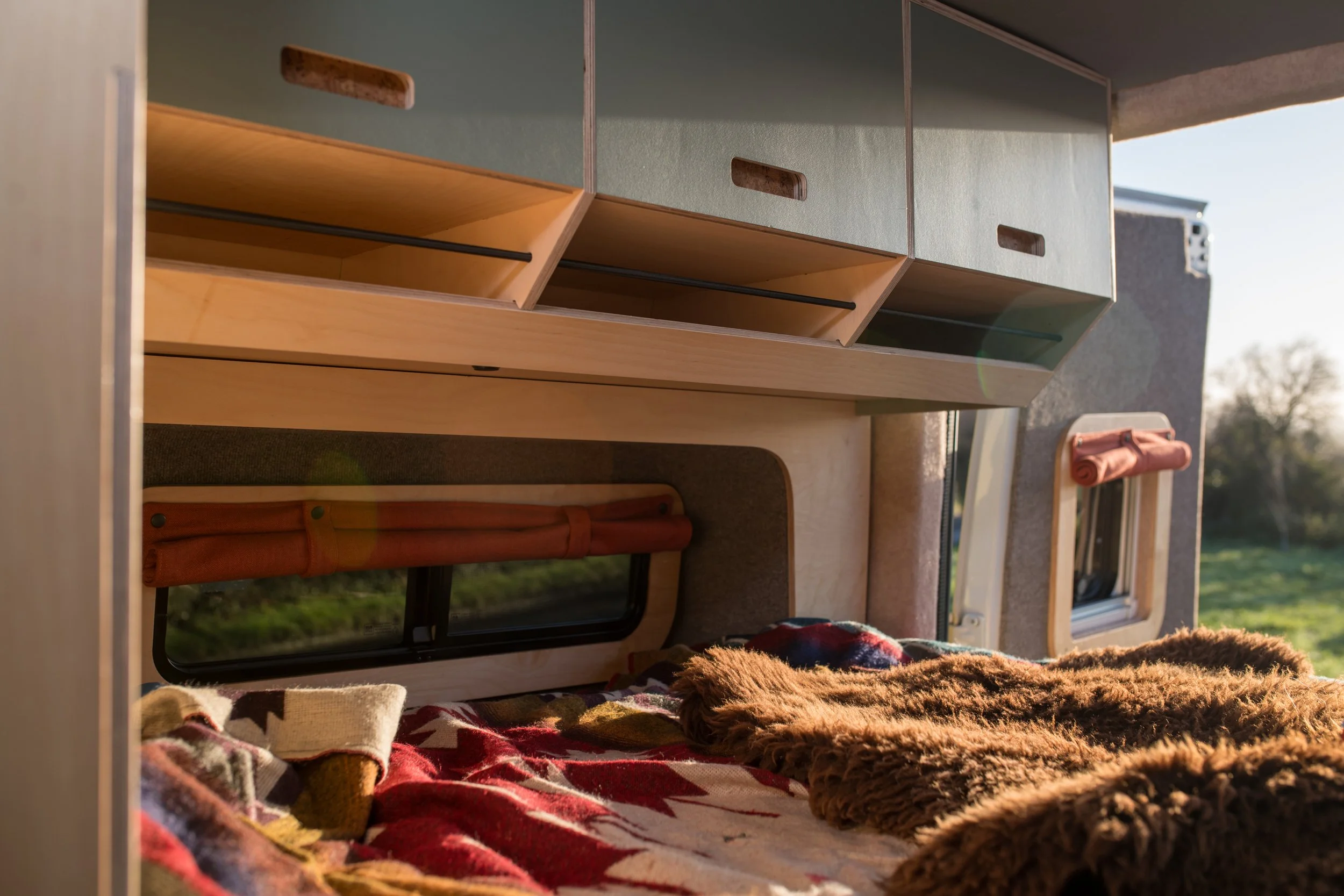

  • Cosy double bed with soft blankets and overhead storage in a Fern campervan, designed for comfortable, uninterrupted sleep while on road trips.

    For Deep-Sleep Dreamers

  • Two friends sharing drinks at the entrance to the kitchen of a Fern campervan, using the slide-out table to serve food and host at a campsite.

    For Campsite Entertainers

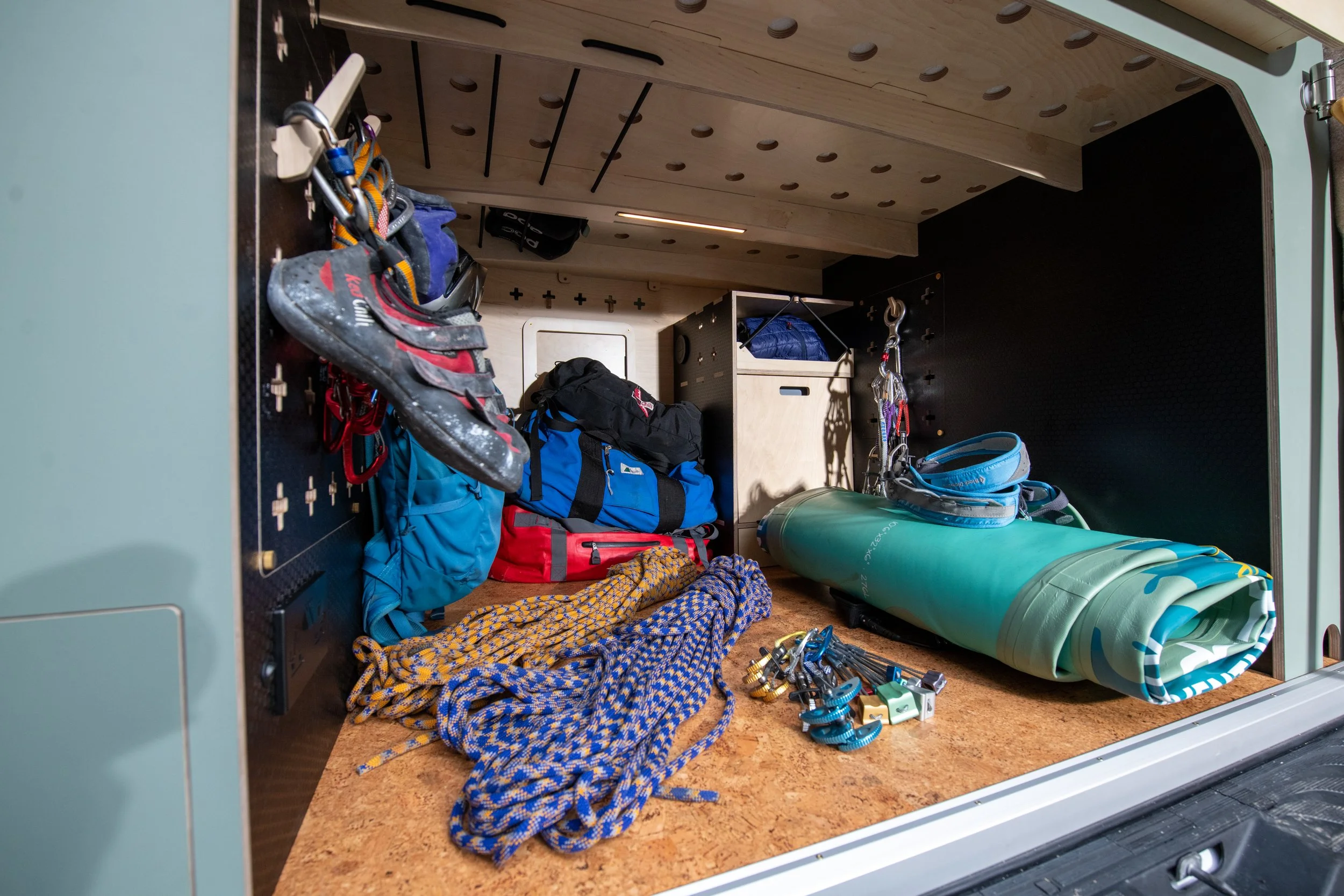

  • Fern campervan garage storage packed with climbing ropes, pads, and bags, using modular storage panels to keep organised.

    For Kit-Heavy Adventurers

  • A couple in the seating area of a Fern campervan, with mugs and a paper map, planning their next route while in comfort indoors.

    For Meticulous Planners

  • Freestanding Fern campervan table set up on the beach with bread and wine, creating an easy outdoor dining space beside the van.

    For Alfresco Diners

  • Person preparing fresh ingredients on the pull-out kitchen counter of a Fern campervan, using the well-equipped space to cook while on the road.

    For Creative Chefs

Off-grid life as standard

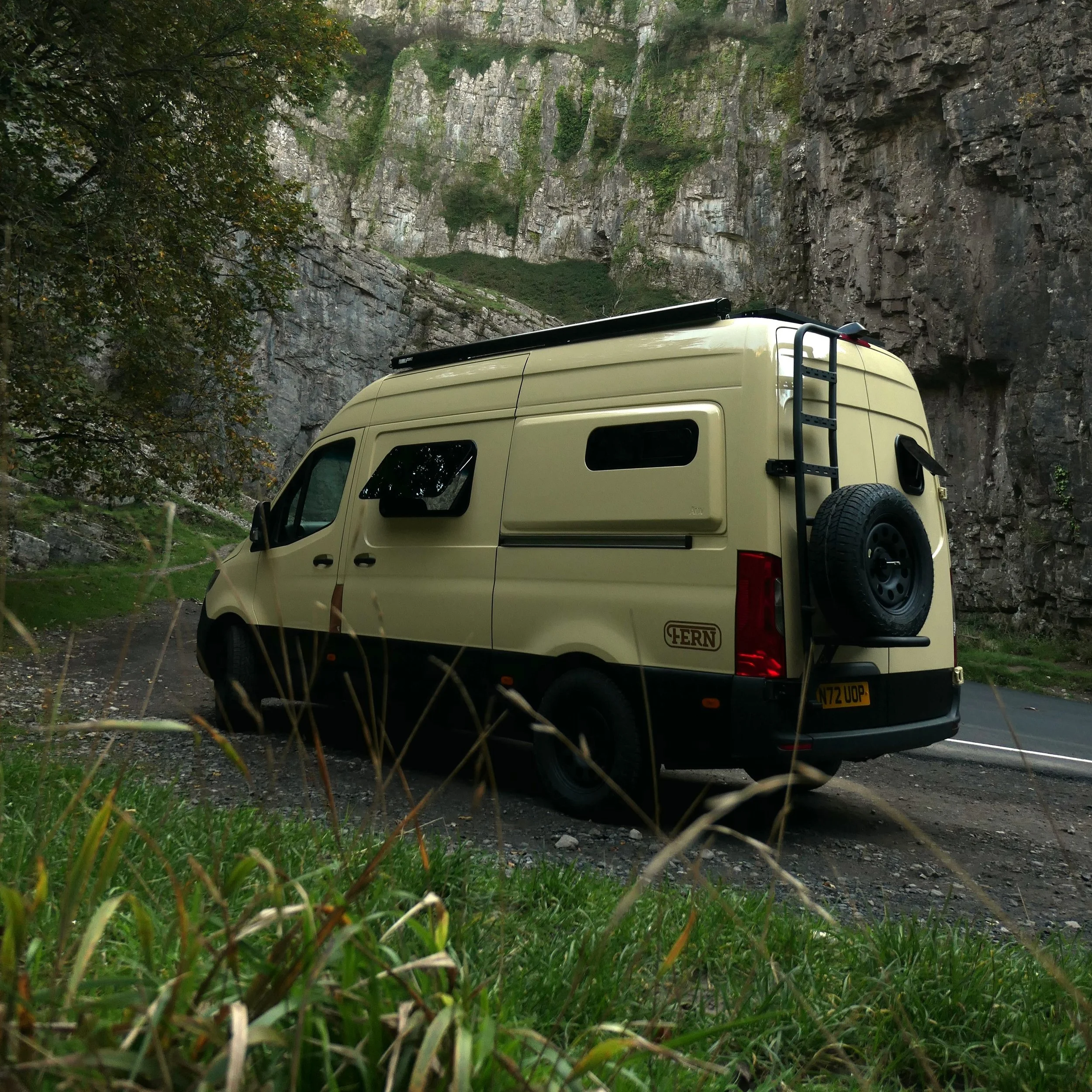

Fern campervan driving through Cheddar Gorge in Somerset on a wet day, showing its ability to explore remote landscapes while staying self-contained.

we prioritise a truly self-contained lifestyle to protect the delicate ecosystems you’re travelling through.

Here’s how:

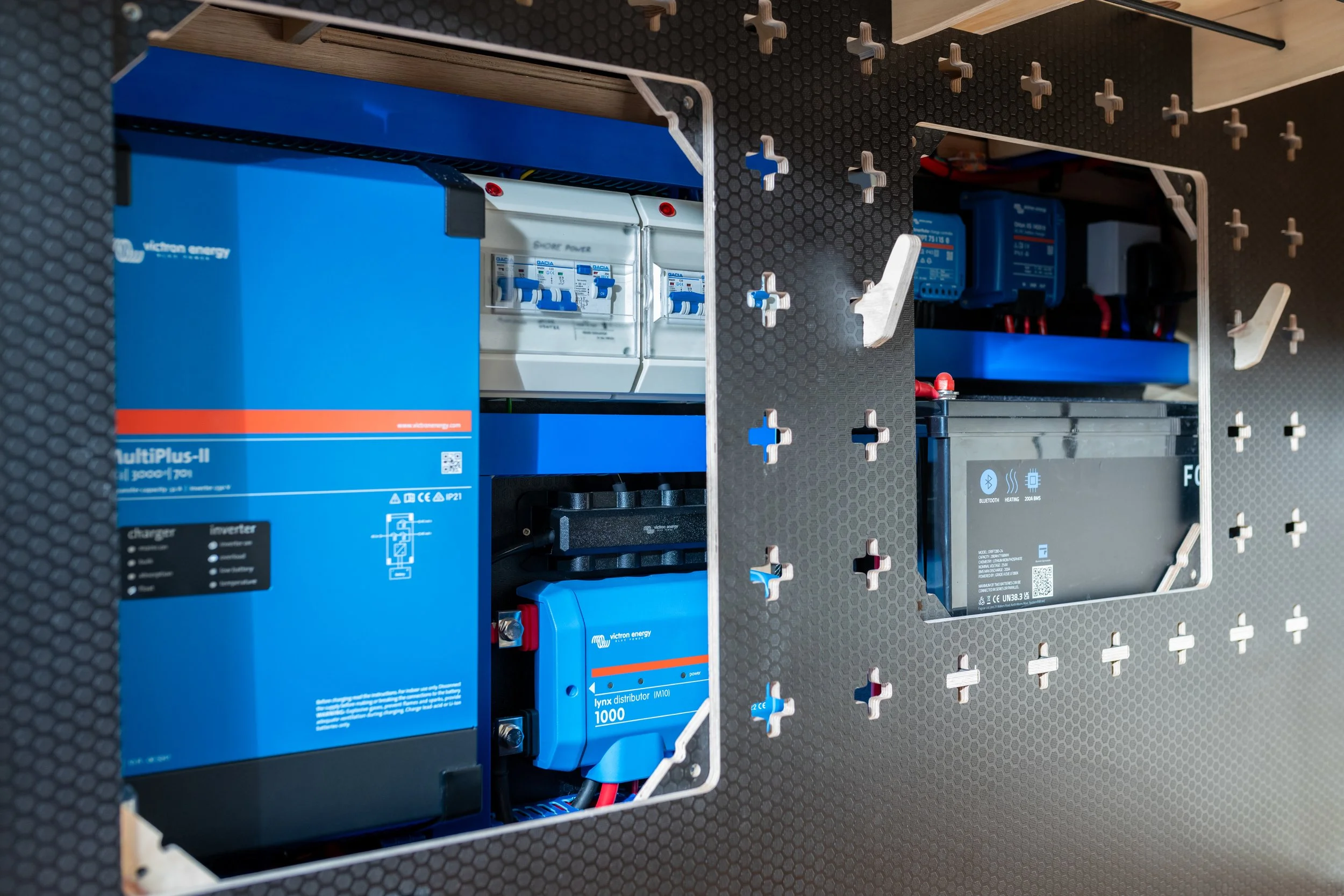

  • Fern campervan electrical system with Victron inverter, chargers, and batteries neatly mounted in the garage area, providing several days of off-grid power.

    4 Days of power without charging

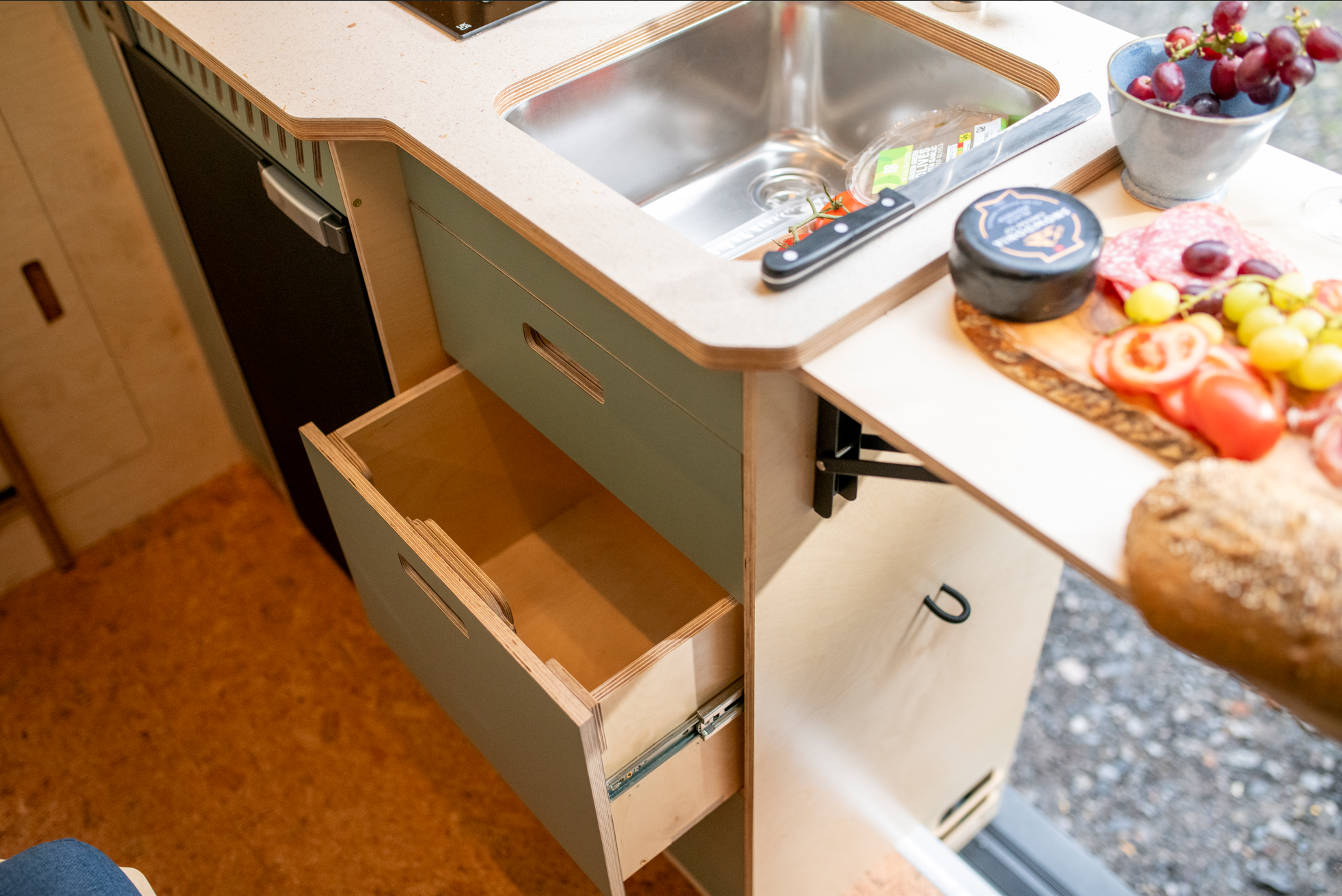

  • All-electric Fern campervan kitchen area with induction hob, sink, fridge, and open drawer beside a prepared grazing board, illustrating gas-free cooking while on the road.

    Gas-Free heating & cooking

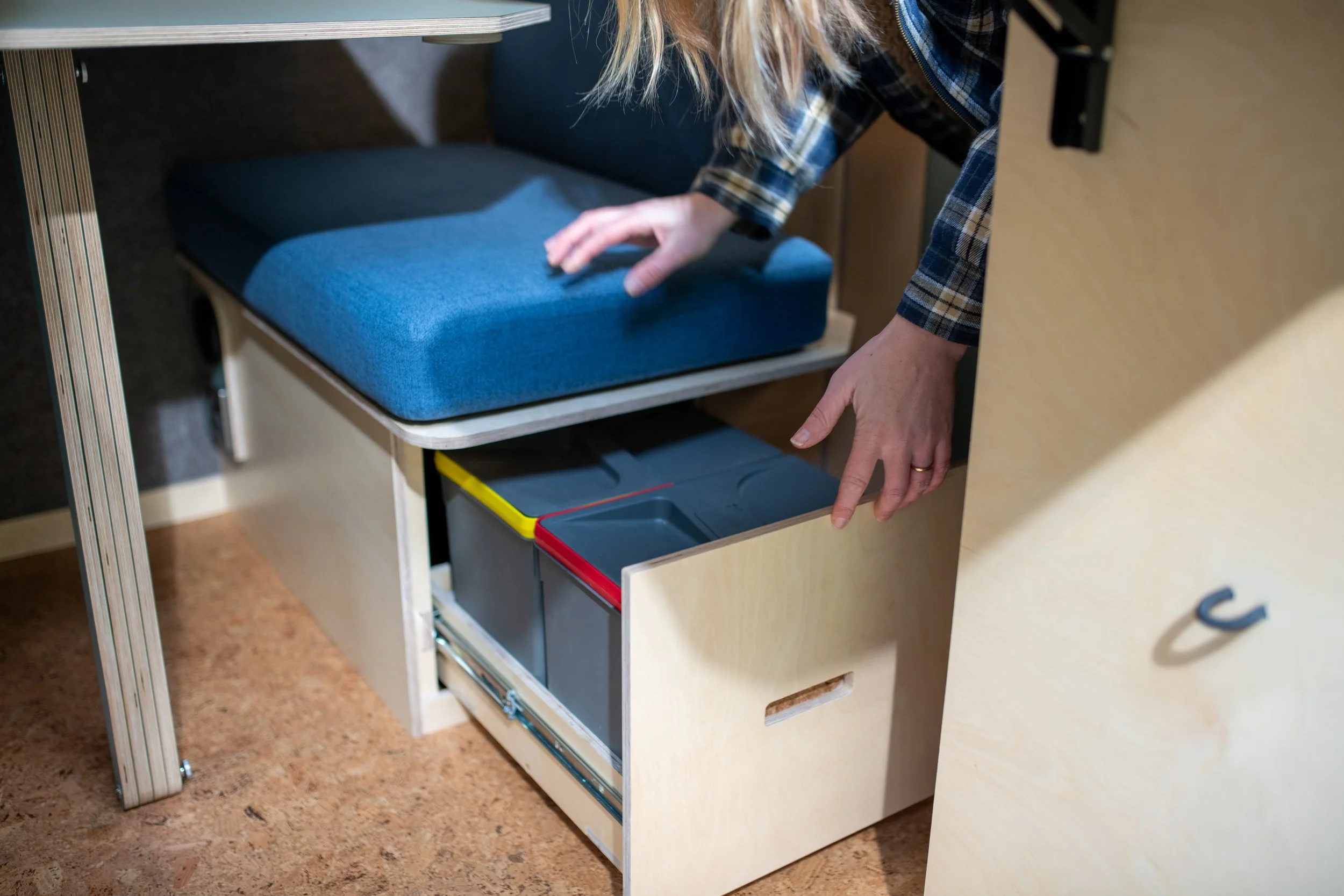

  • Pull-out drawer under the dining area seat with colour-coded bins, providing integrated waste and recycling storage for self-contained travel.

    integrated waste & recycling storage

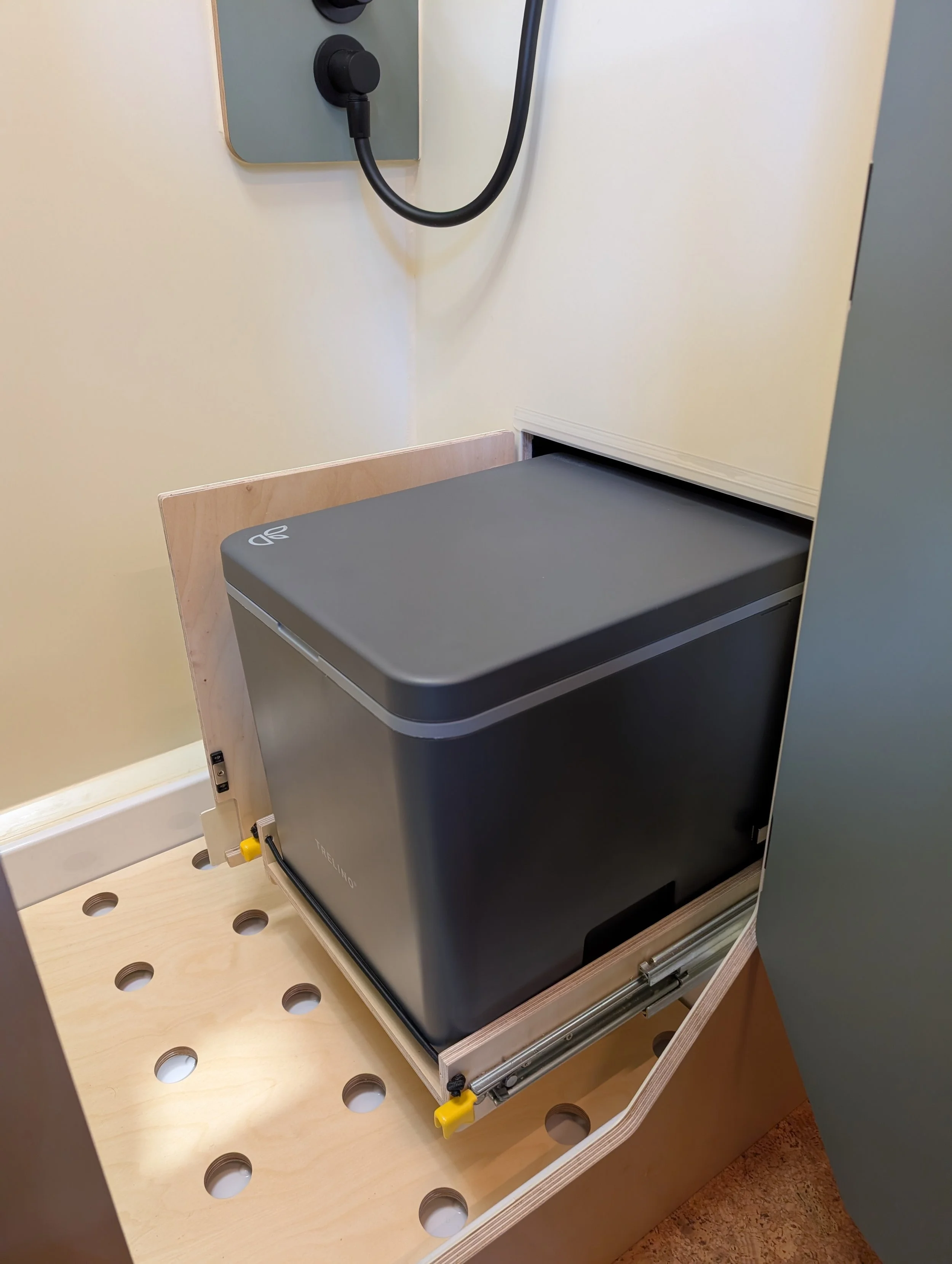

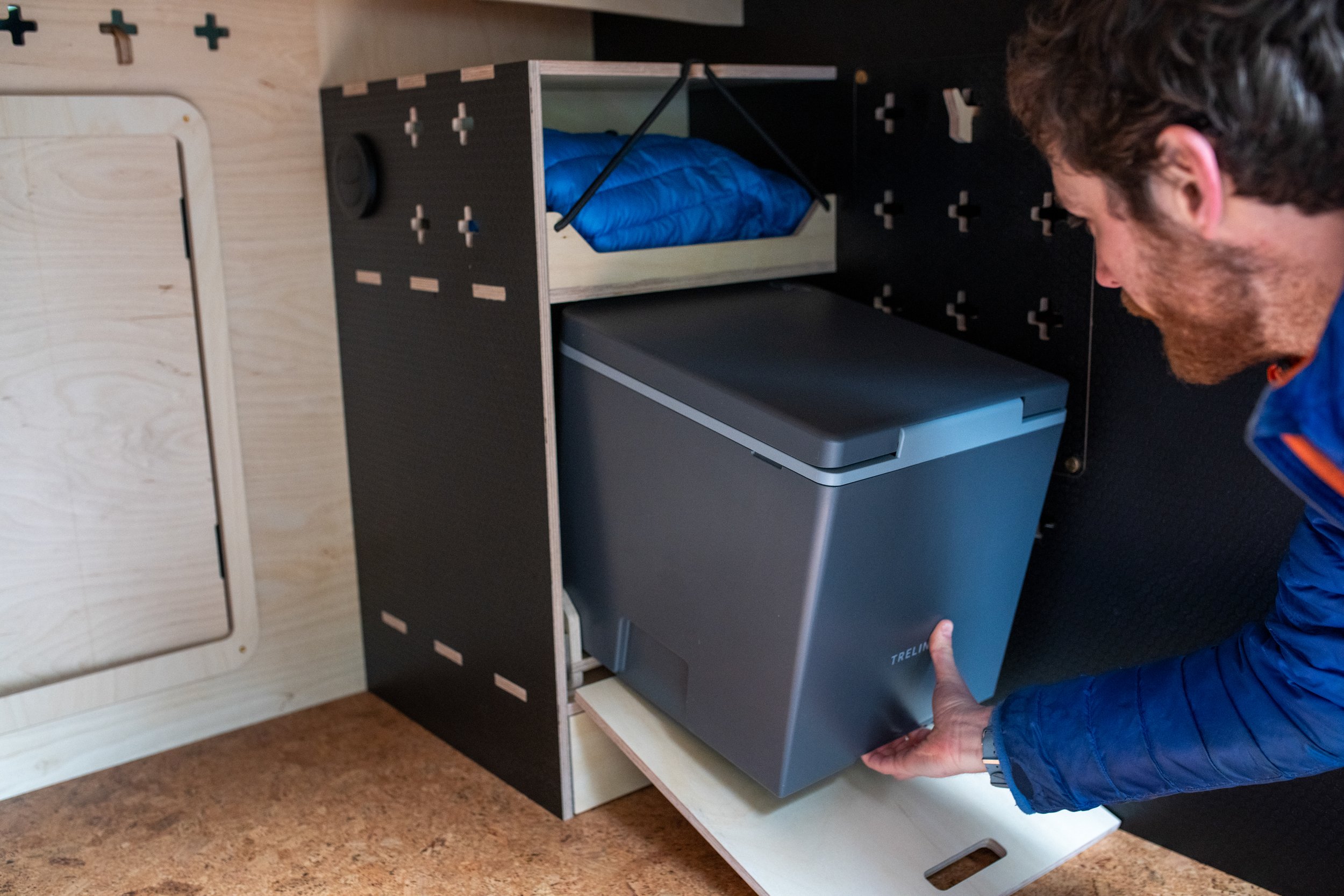

  • Slide-out Trelino composting toilet, accessed from the campervan's garage, giving easy emptying while keeping the onboard loo fully integrated for off-grid use.

    integrated Loo with easy-empty access

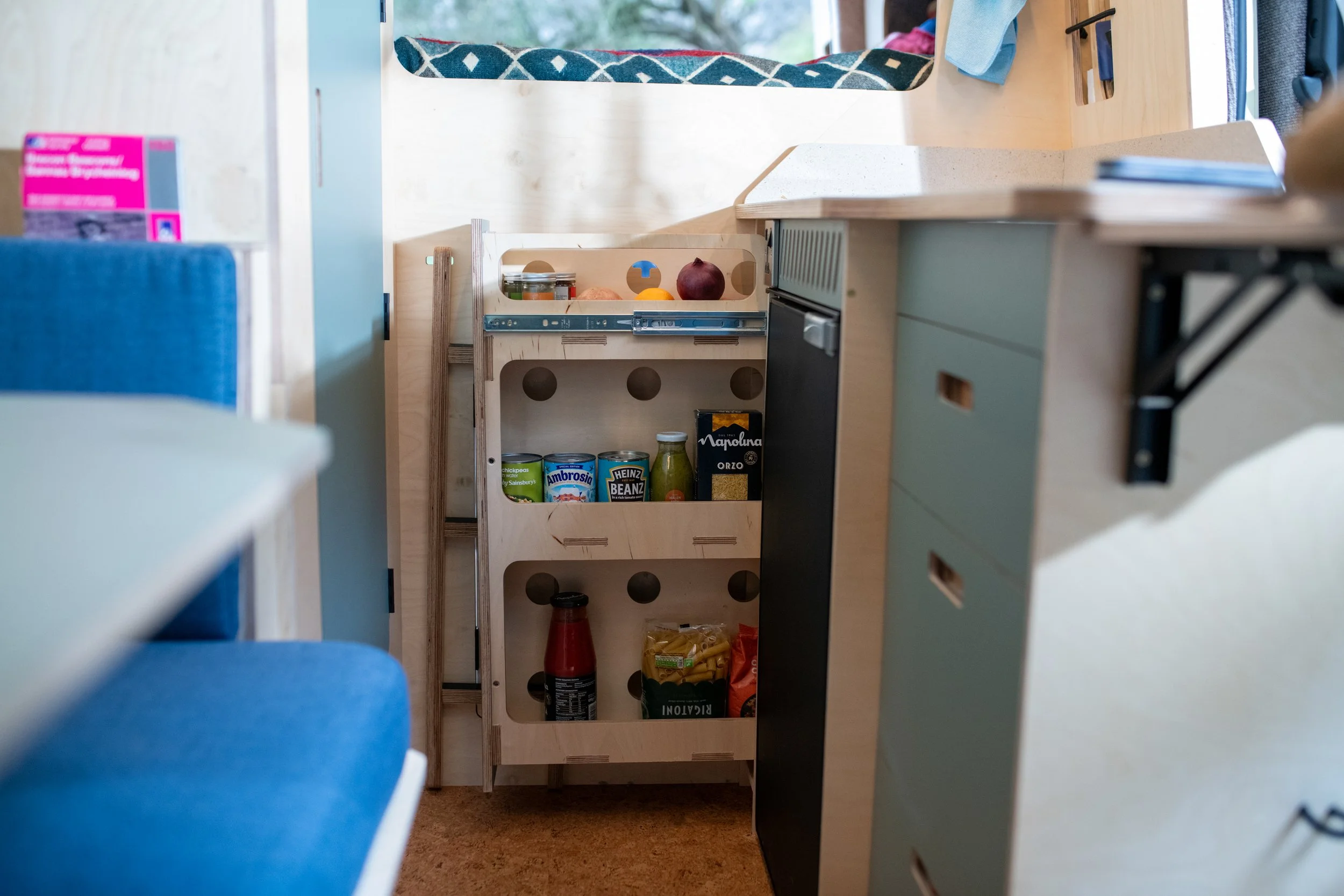

  • Pull-out pantry unit in the Fern campervan kitchen, with shelves stocked with tins and jars to maximise food storage for long off-grid trips.

    high food storage capacity

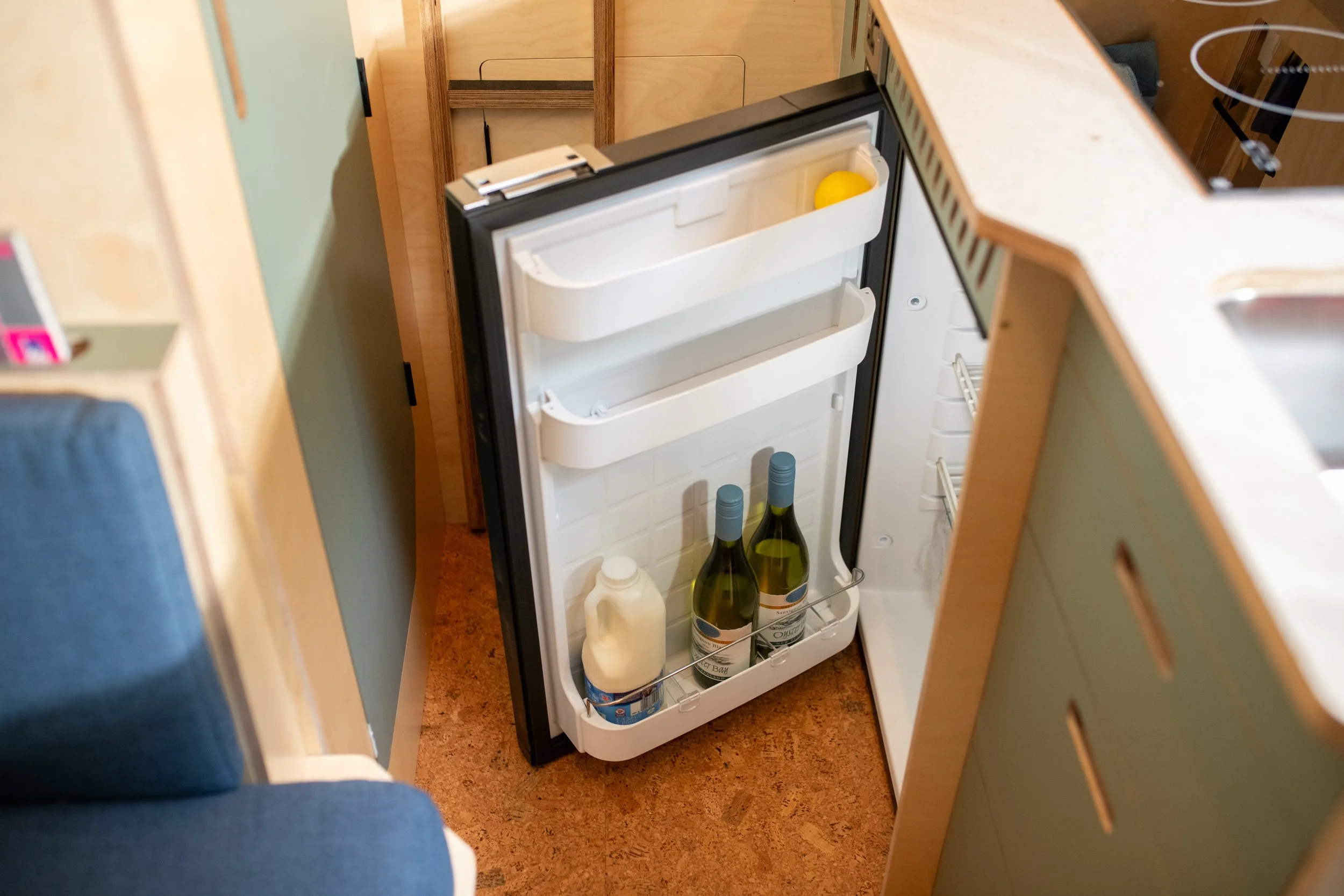

  • Tall 85-litre fridge in the Fern campervan kitchen, with door shelves holding bottles and milk for extended off-grid trips.

    large 85L Fridge

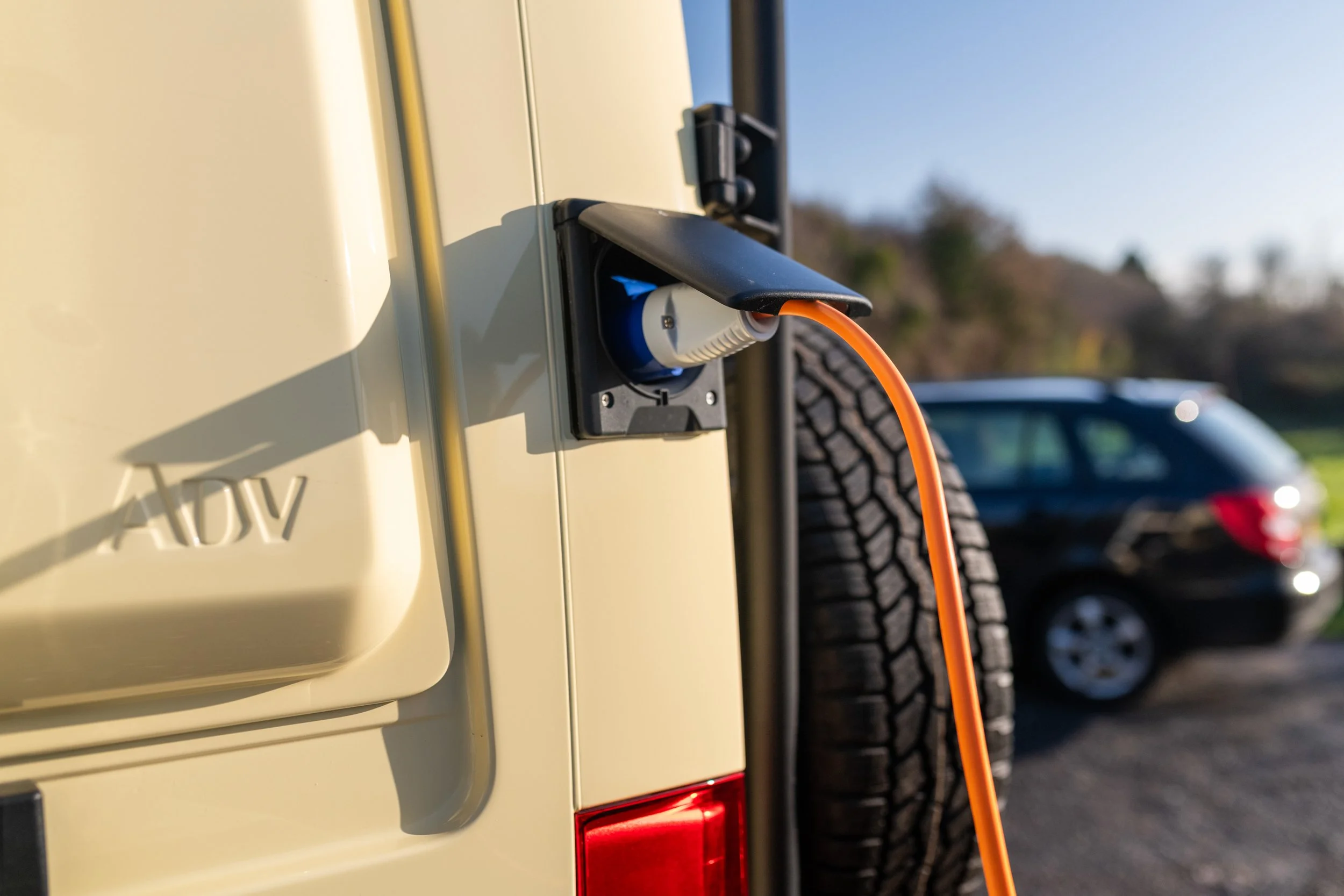

  • Orange hook-up cable plugged into the Fern campervan’s rear shore power inlet, allowing battery charging and direct mains power when parked.

    Shore Connection for charging and direct power

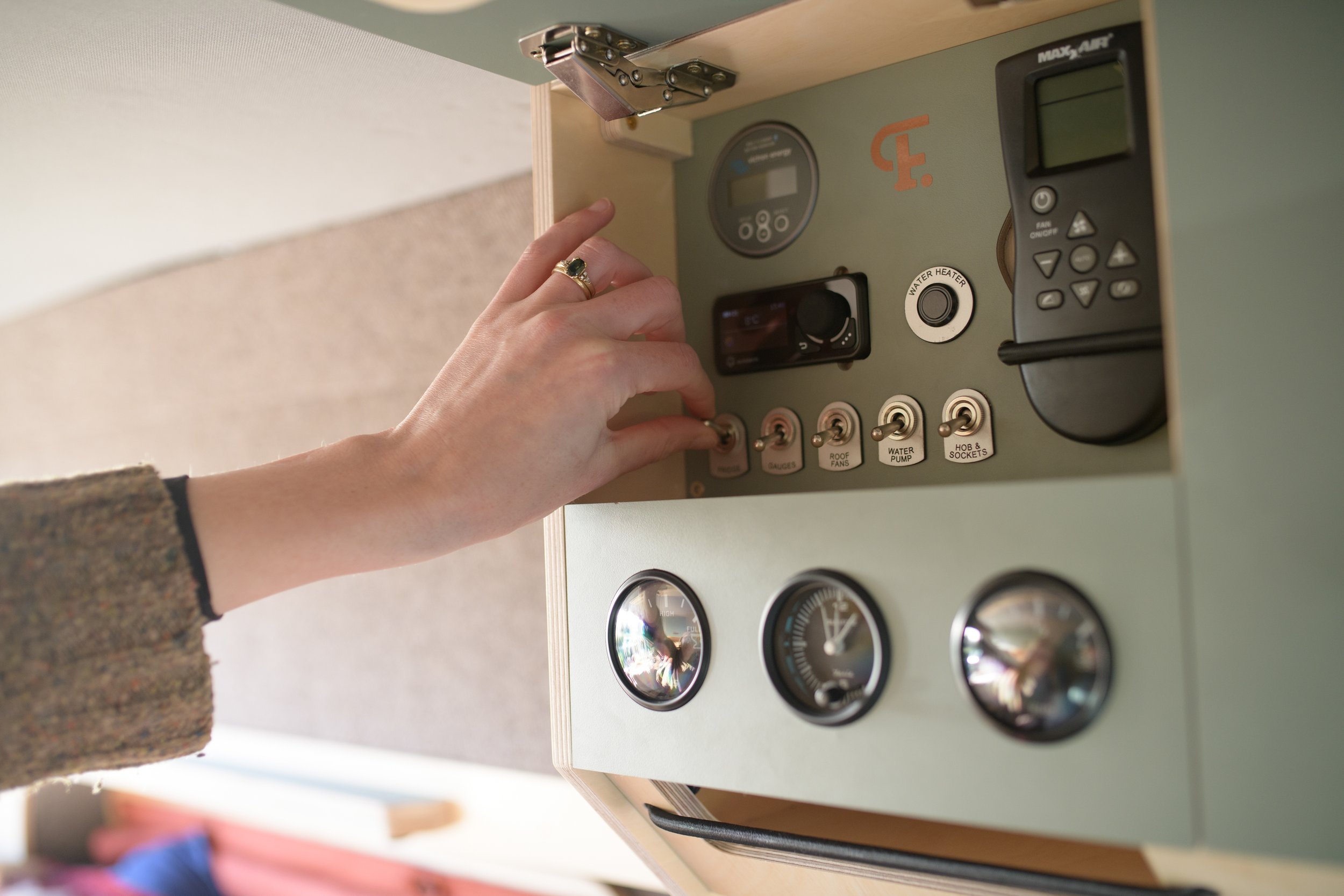

  • a hand operating the campervan’s overhead control panel, with switches and gauges for easily monitoring and managing off-grid systems.

    convenient monitoring & control systems

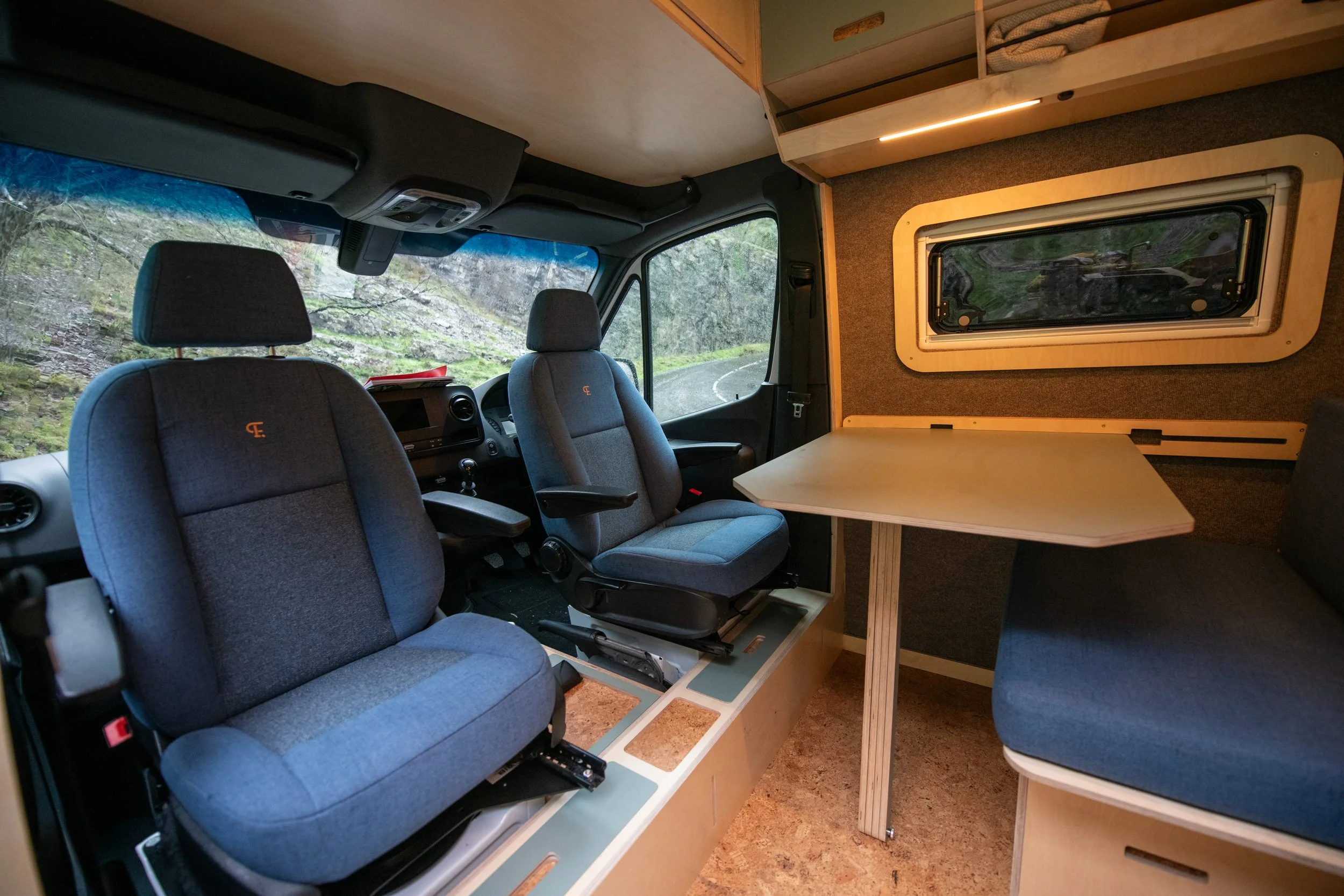

  • Fern campervan front lounge with swivel seats and dining table, lit by overhead LED strip that provides focused lighting where it is needed most.

    lighting where you need it, nothing superfluous

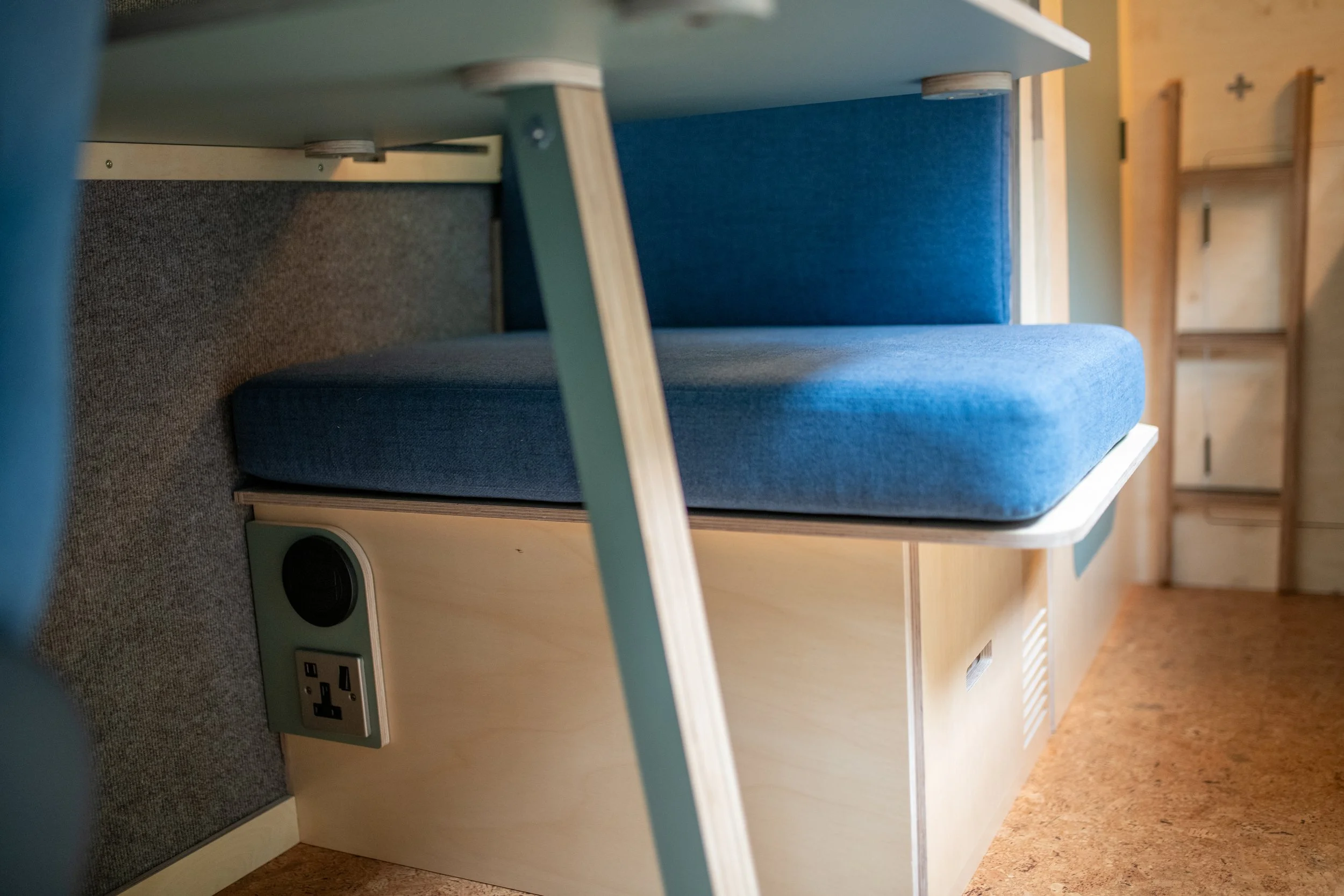

  • UK household socket and 12-volt outlet neatly built into the base of the Fern campervan's seating, powered by a 3000W inverter for using everyday appliances off-grid.

    3000W Inverter to power domestic sockets

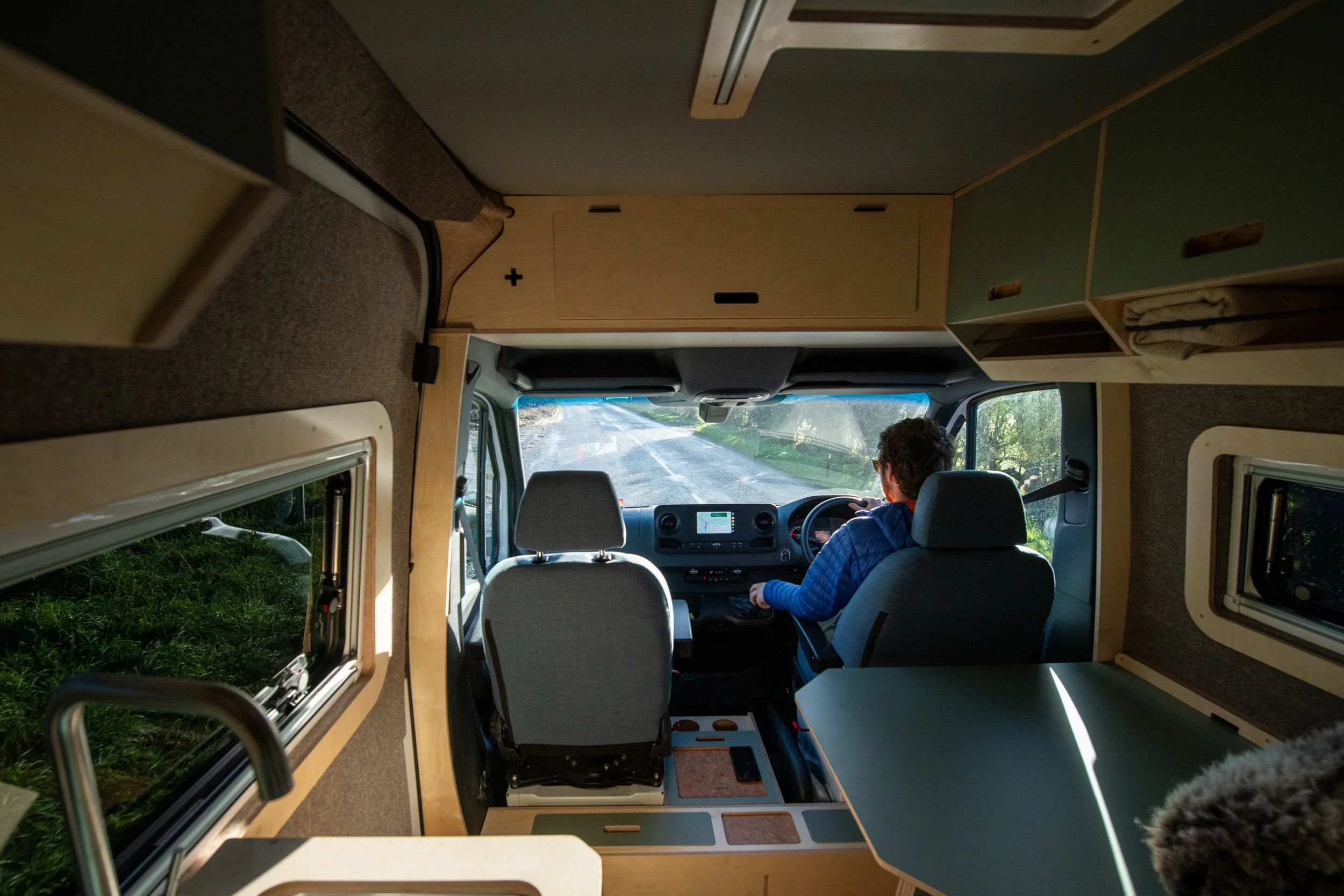

  • View from the living area of a Fern campervan while driving, illustrating how the onboard batteries recharge on the move, from solar, or via shore power for long journeys.

    charge by driving, solar power, or shore connection

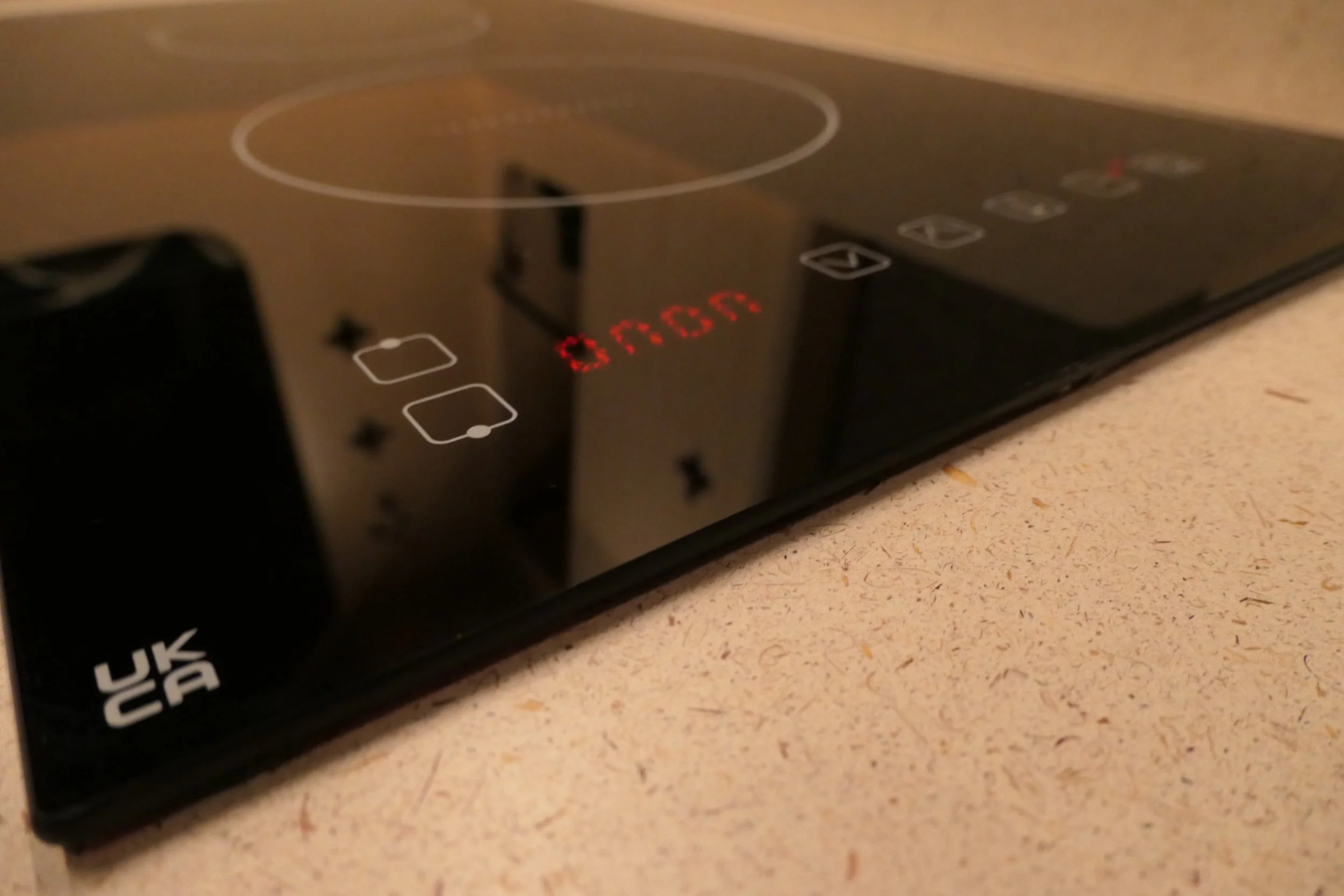

  • Black glass induction hob in the Fern campervan kitchen, powered by the electrical system for safe, gas-free cooking on the road.

    Gas-Free Induction cooking

Capability built in

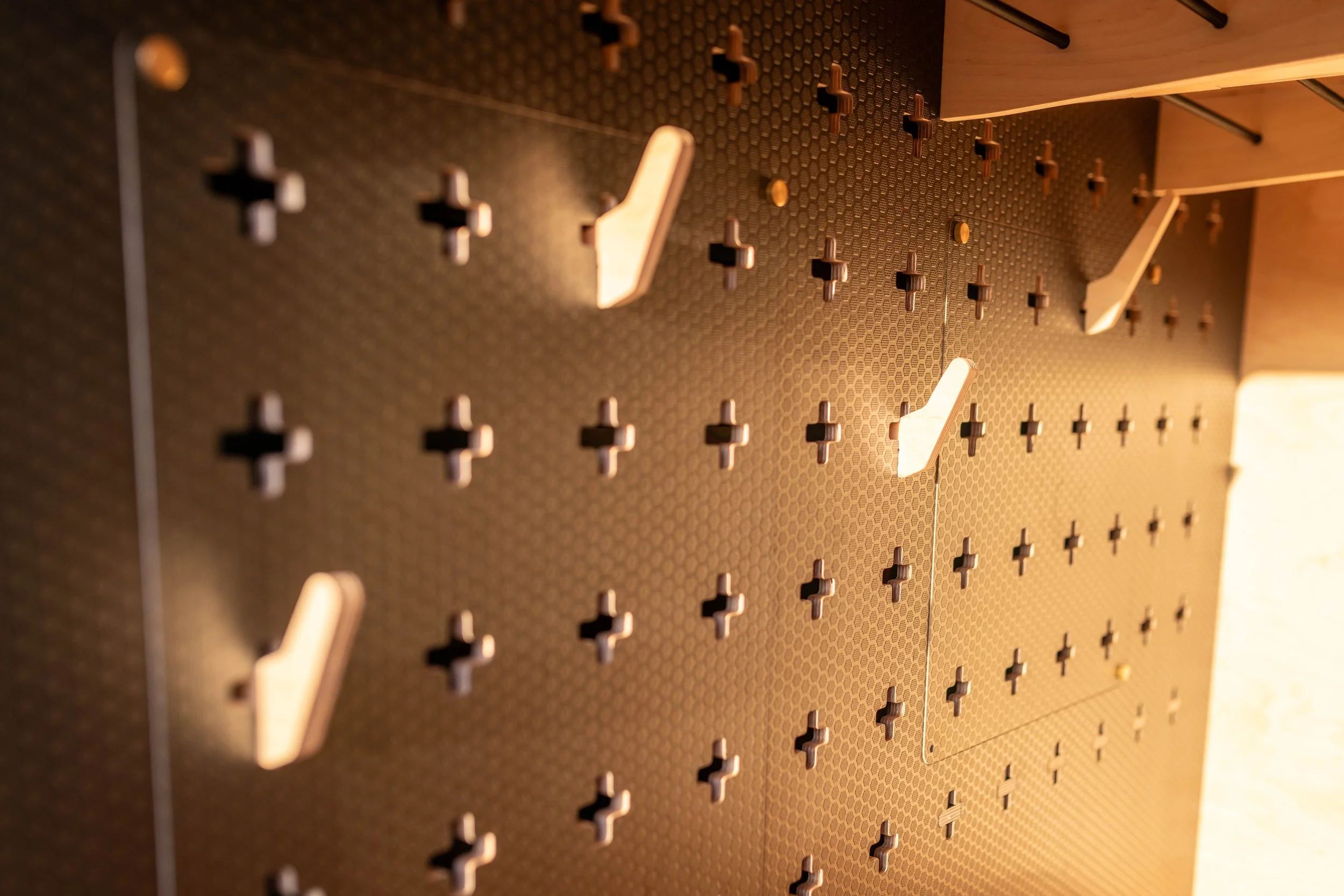

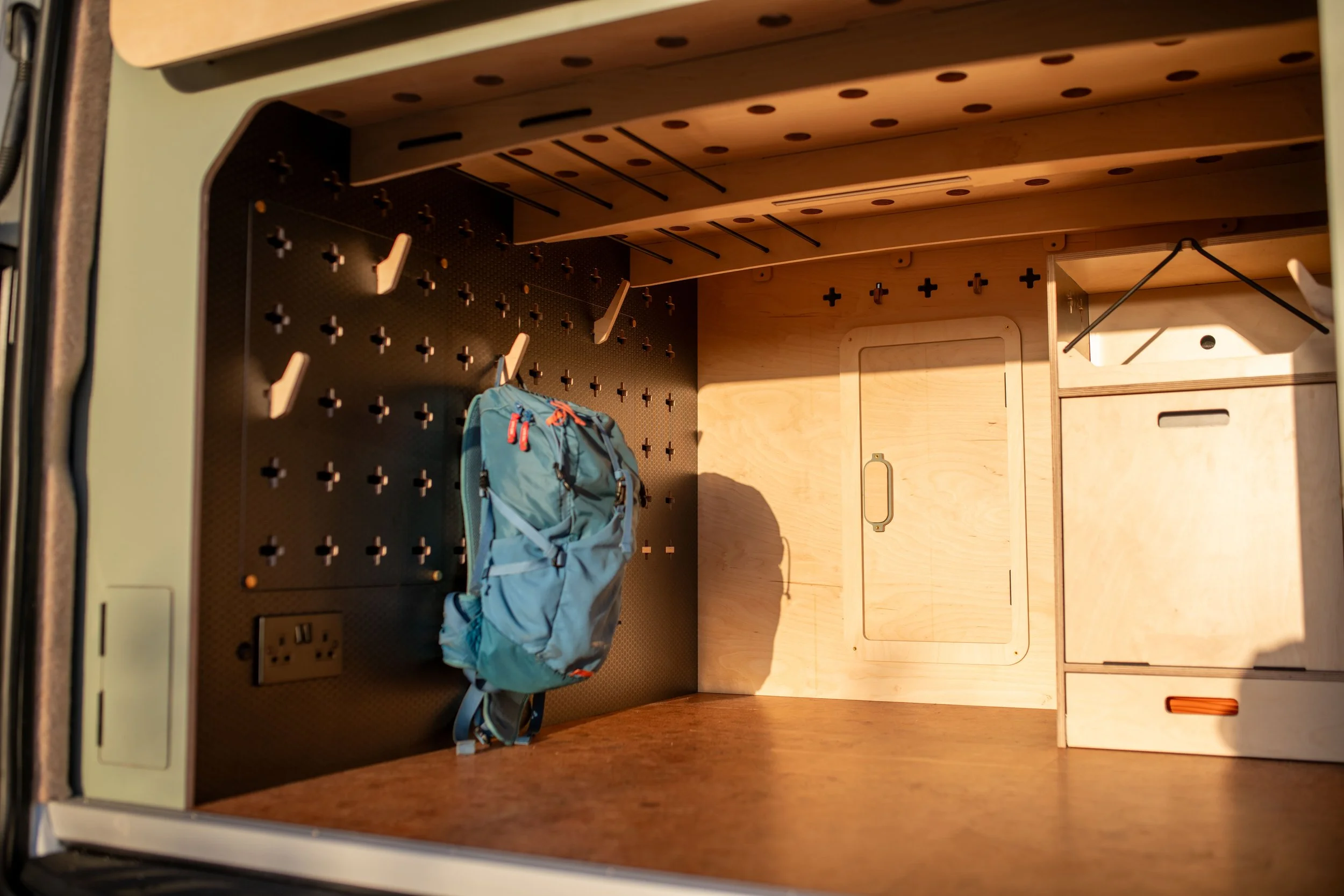

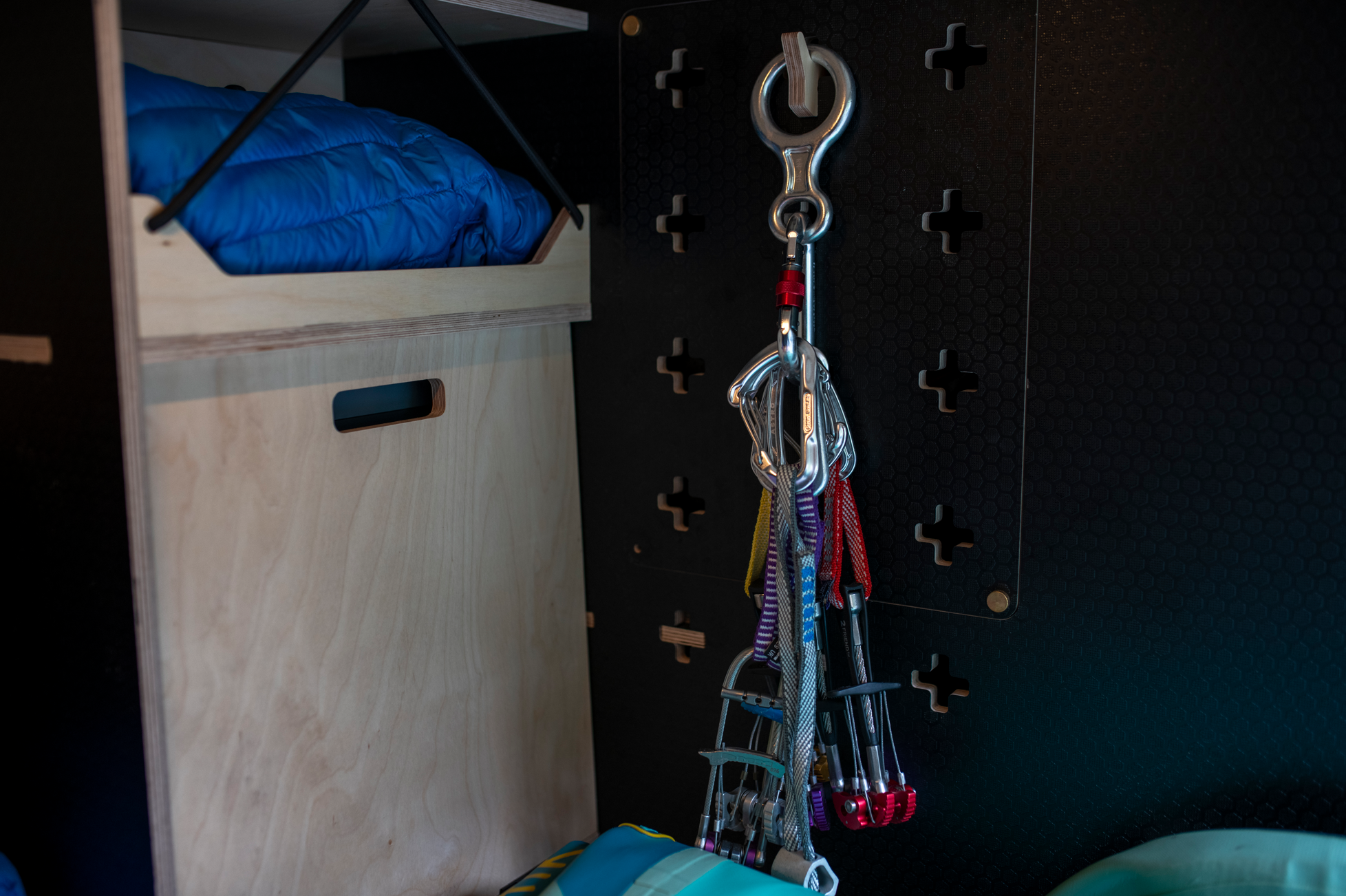

Empty wooden storage compartment with pegboard and hooks, a backpack hanging, and a small door in the back wall.

kiwi cross system

Developed in New Zealand, the unique attachment point system is incorporated throughout to allow for your own specific storage needs. The ability to swap adapters around means rapid changeovers between sports or everyday campervan essentials. Oars, paddles, and longer items can be suspended from the ceiling using the same system.

We can design and make adapters to your own requirements. Simply come to us with what needs securing and we will discuss how to make it a reality.

LENGTH 5.9m

WEIGHT 3.0T

Solar 440w

START YOUR BUILD

(images representative)

01. exterior paint colour:

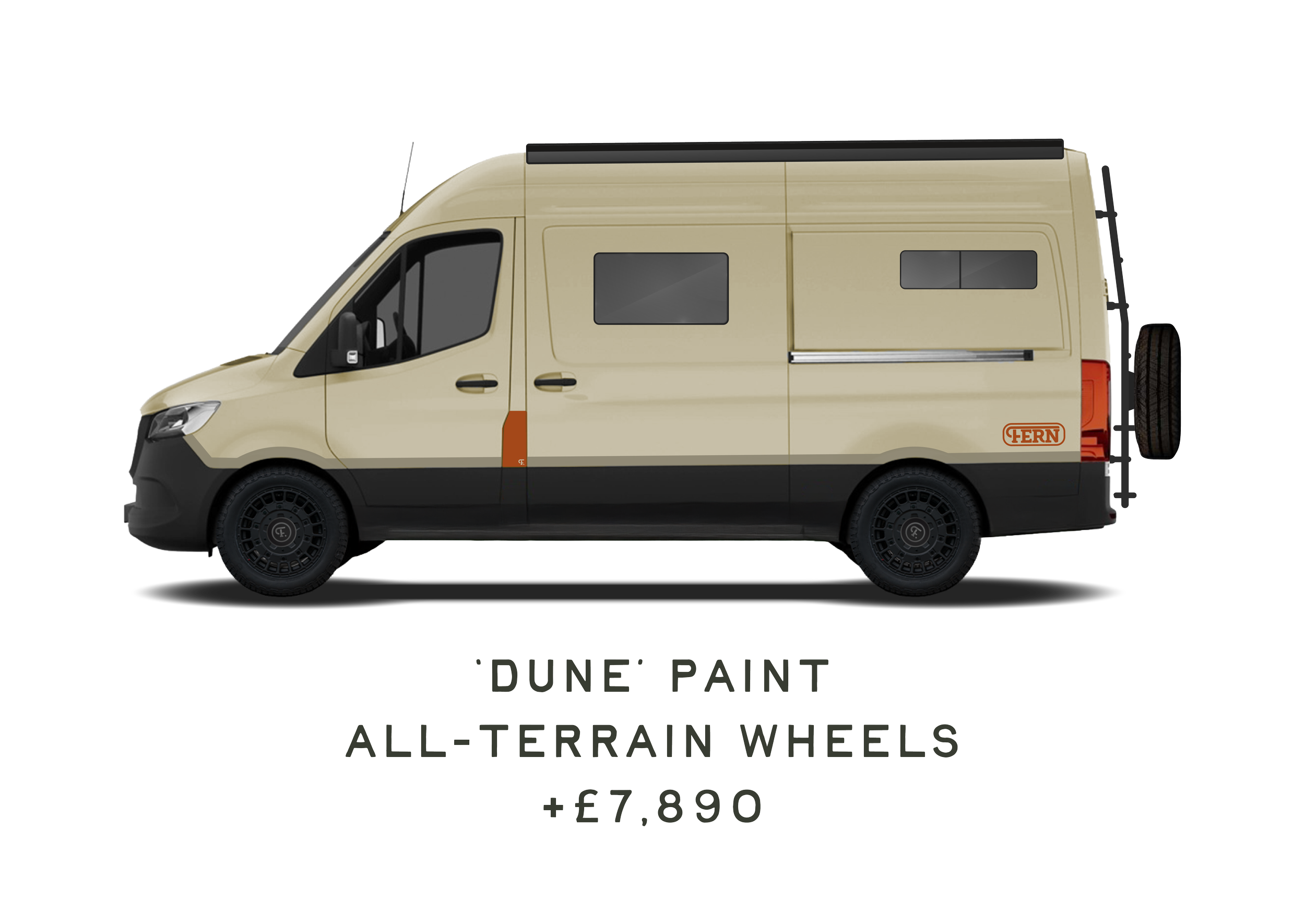

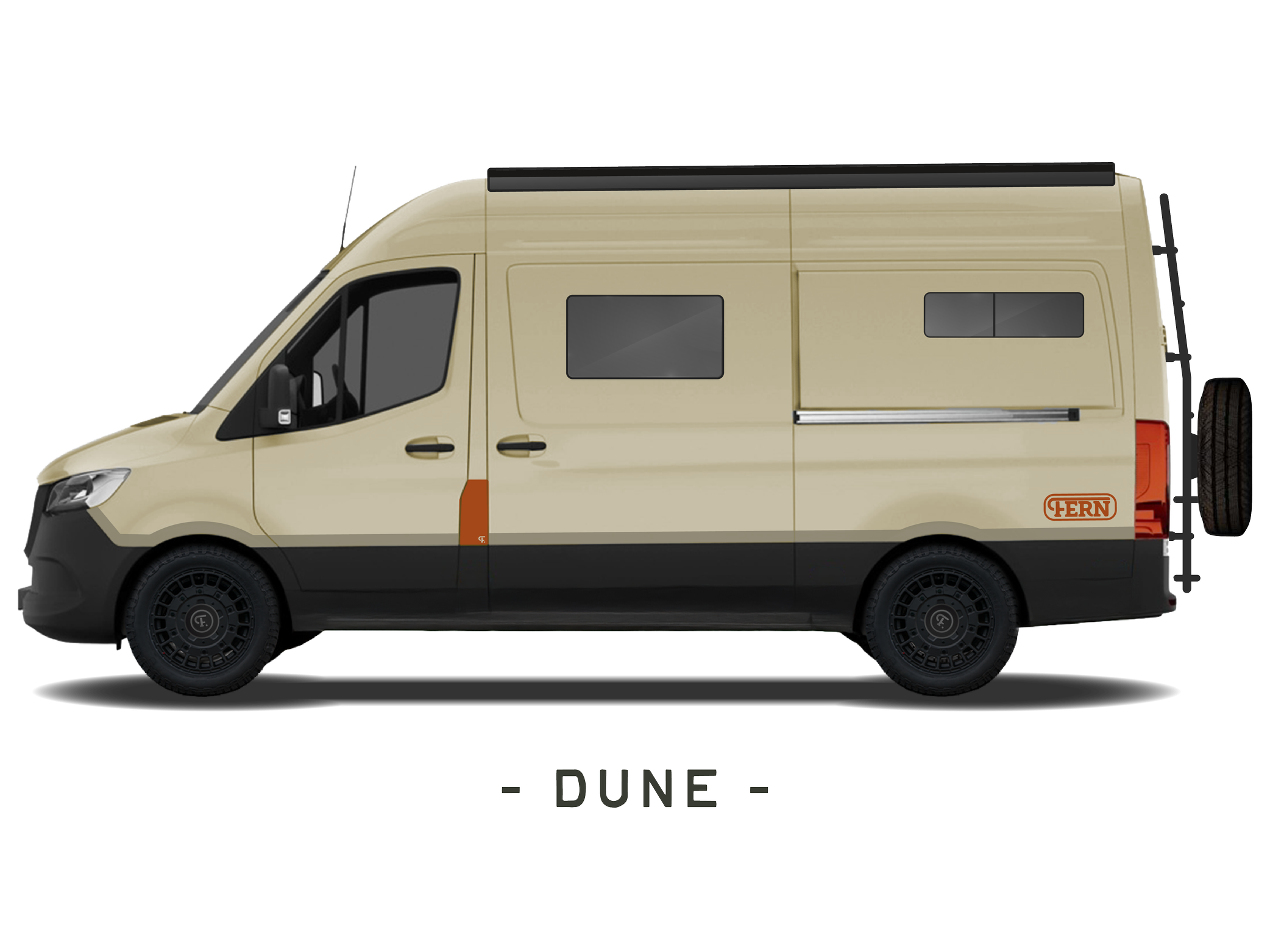

Side view of a beige FERN camper van with black accents, large windows, a mounted spare tire, and branding near the rear, set against a neutral background.

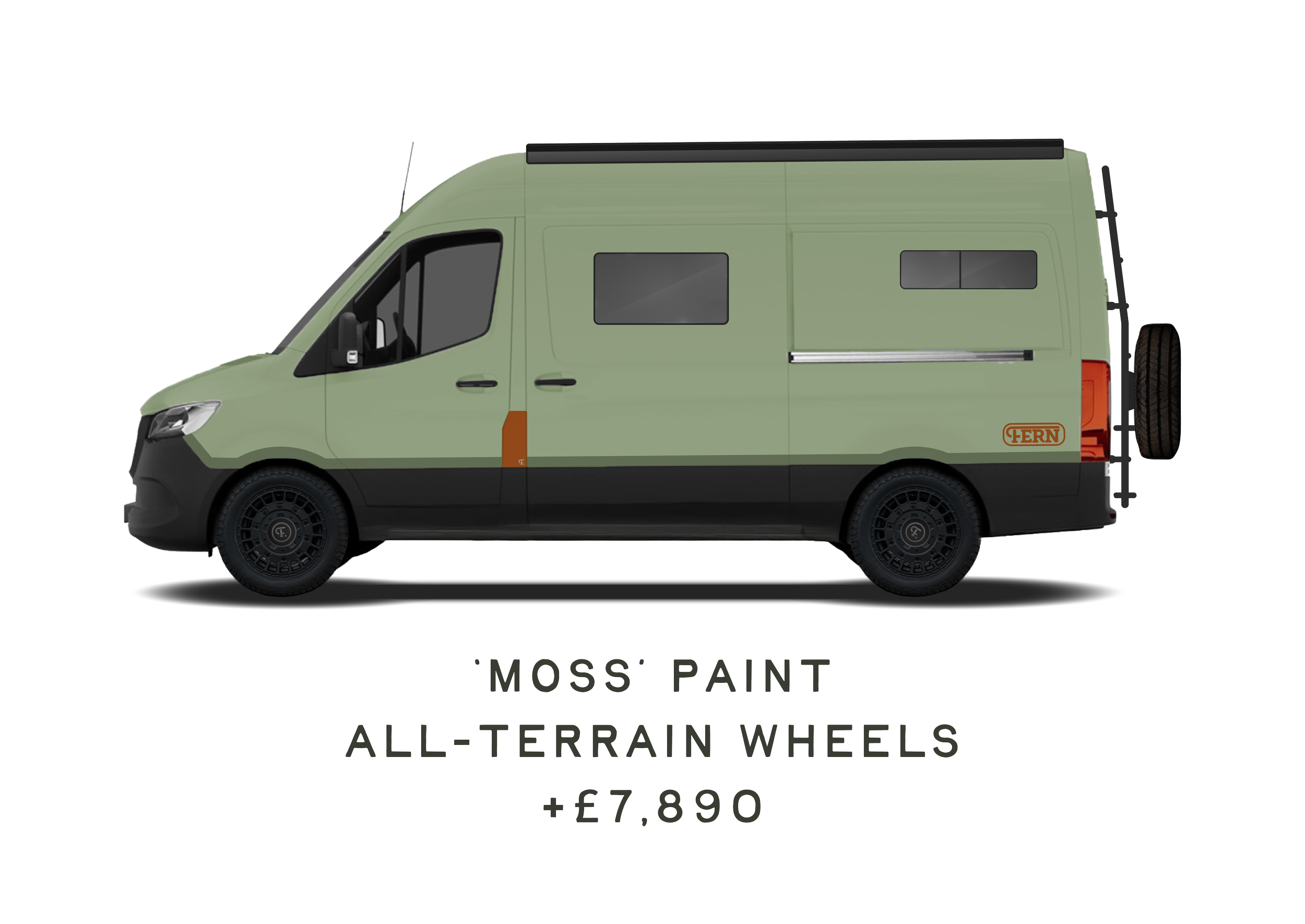

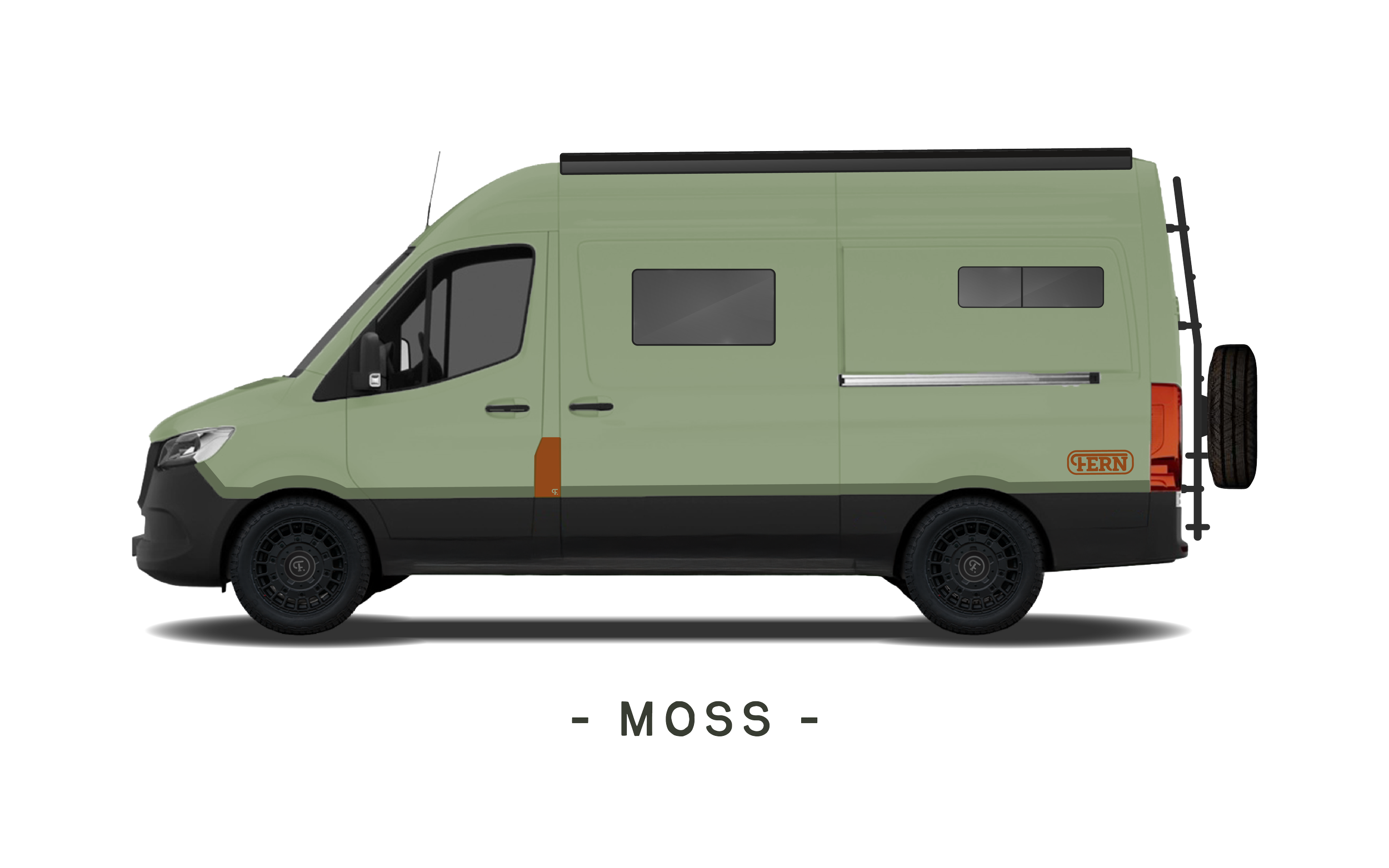

Side view of a green camper van named MOSS with black wheels, windows, and a spare tire mounted on the rear, featuring the branding FERN on the back.

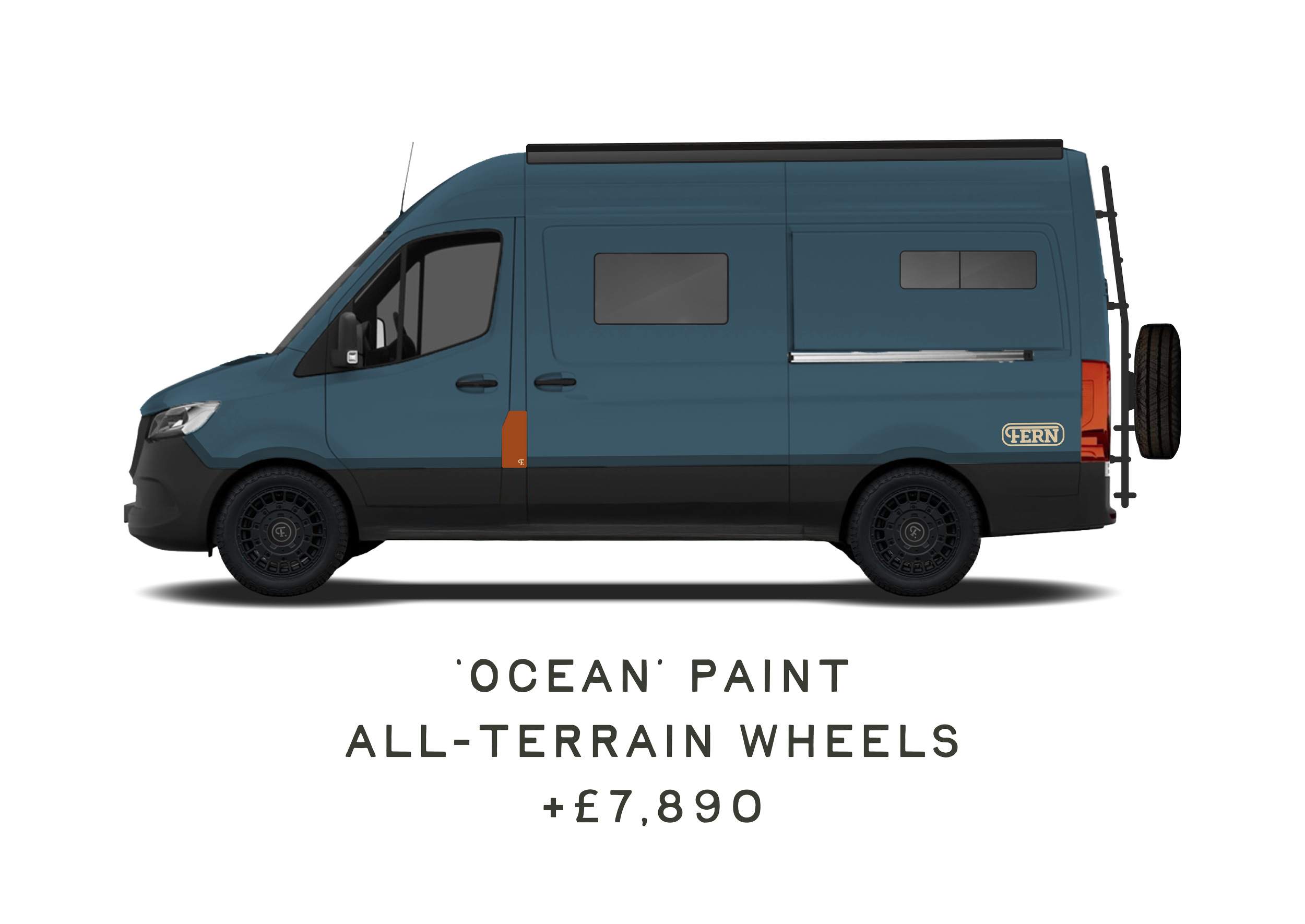

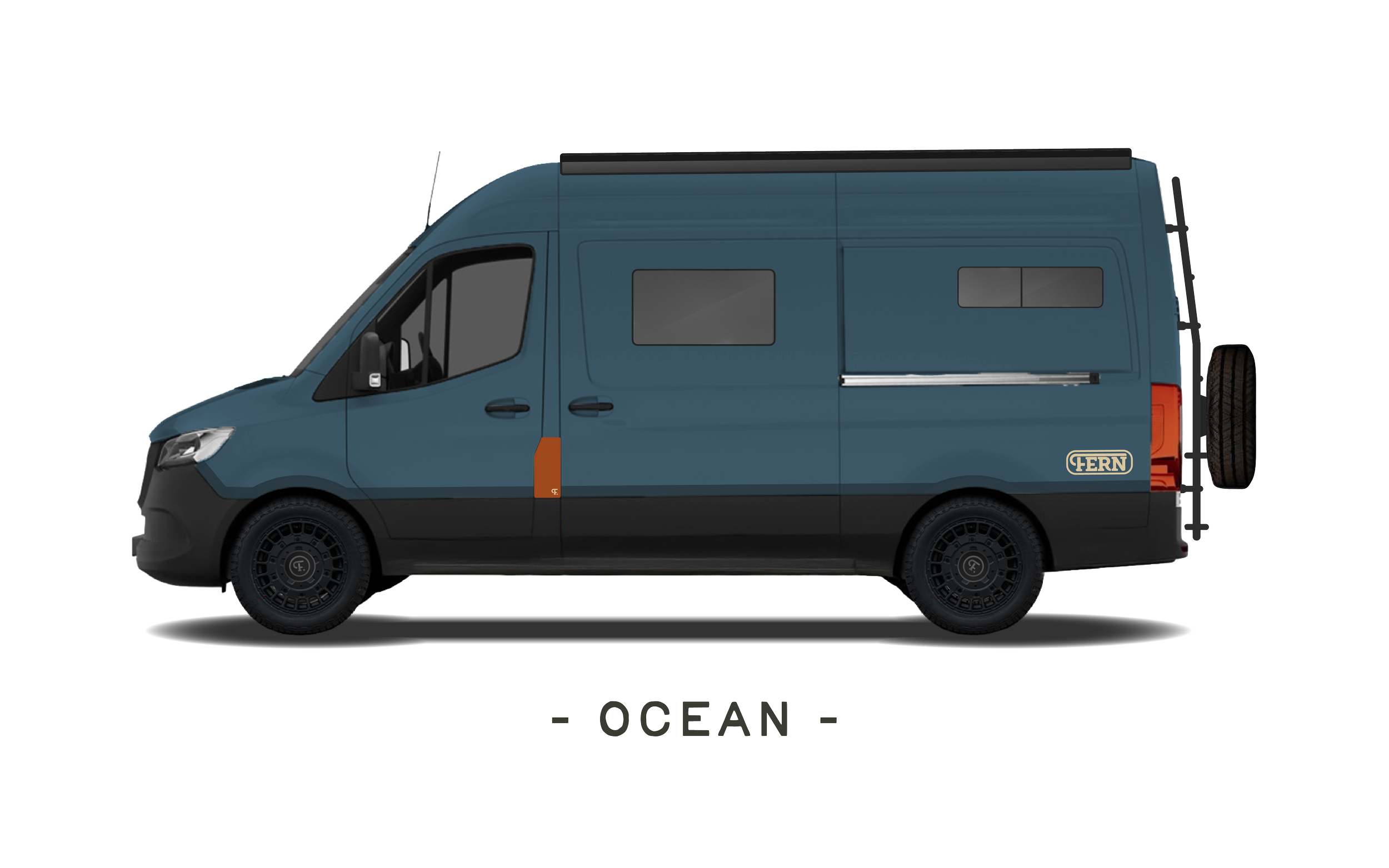

A blue camper van with black wheels and a spare tire attached to the back is shown. The van has windows and a door, along with the word 'FERN' on it. Below the van, the words 'OCEAN' are displayed.

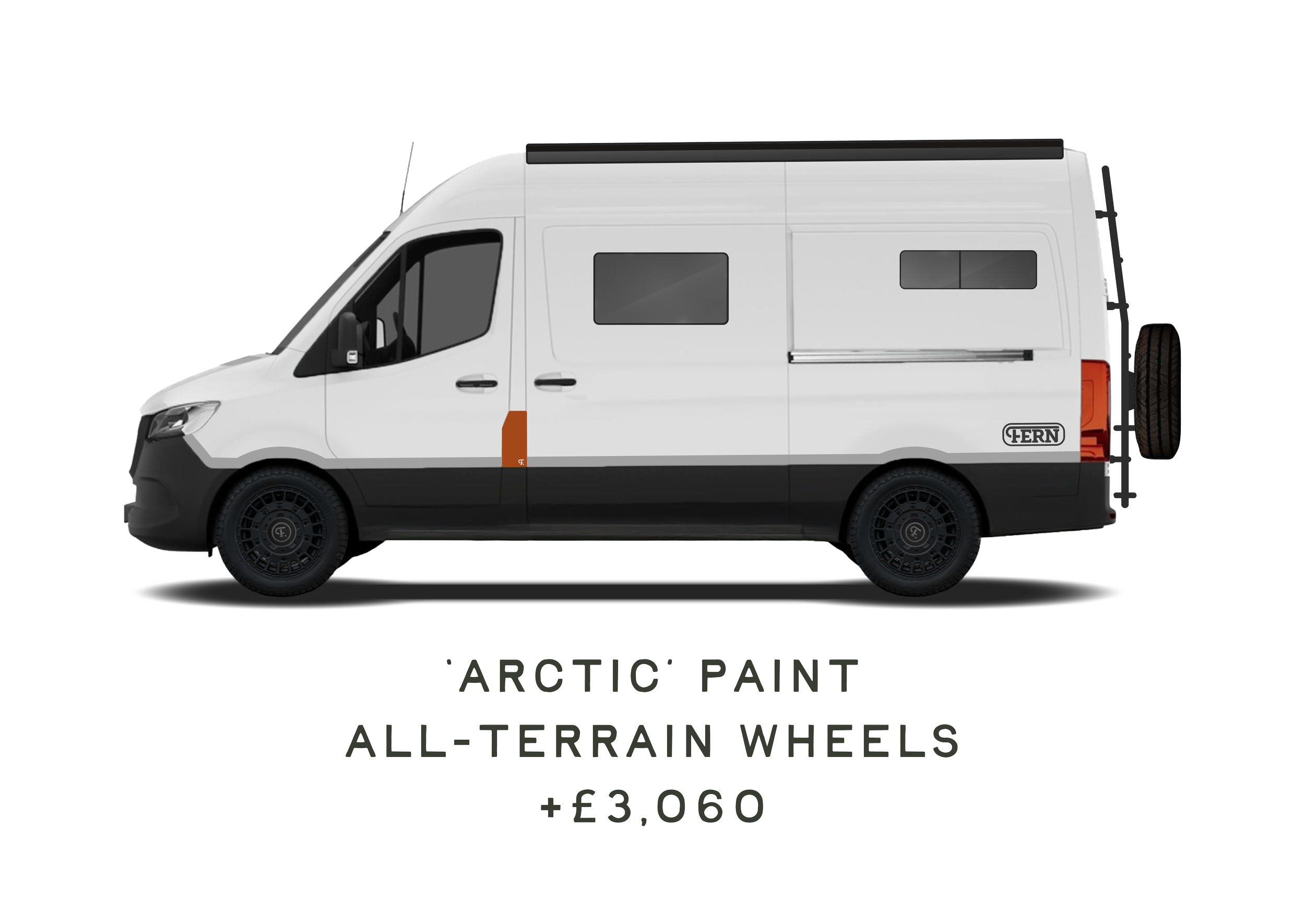

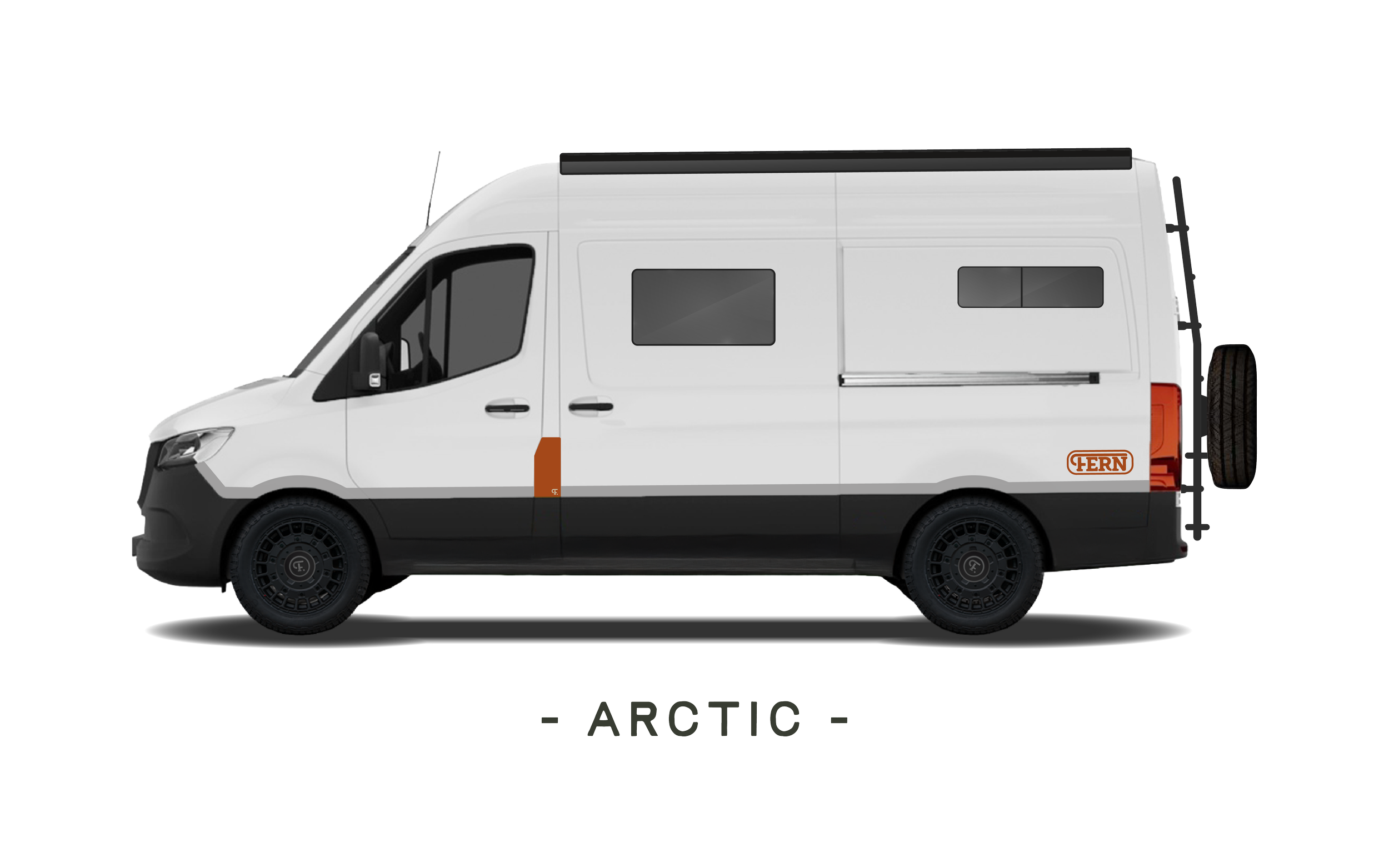

Side view of a white Arctic expedition camper van with black accents, two windows, a spare tire mounted at the rear, and a small Fern logo near the back wheel.
A beige camper van with black accents, parked on a gray surface, with the word QDUNE written below.
A side view of a light green camper van with black wheels, two windows on the side, a spare tire attached to the rear, and the word 'FERN' written on the back. The caption below reads '- MOSS'.
A blue camper van with black wheels and a spare tire mounted on the back, parked against a black background with the word 'OCEAN' written below.
Side view of a white Arctic camper van with black wheels, orange accents, and a spare tire mounted on the rear, labeled FERN.

02. INTERIOR LAMINATE colour:

The image shows a closed, dark blue, rectangular box with rounded corners, set against a black background. There is text below the box that reads '= STORM =' in a stylized font.
Illustration of a rectangular blush compact with rounded corners labeled 'ROSE' underneath.
Illustration of a square with a metallic border, filled with a brownish color, labeled 'EMBER' underneath.
Diagram showing the different types of clay, with a large square clay block in the center and the word 'CLAY' labeled at the bottom.
A small black camera icon with the word "LIVE" underneath, indicating a live broadcast or video feed.
Illustration of a sage herb packet with the word 'SAGE' written below, showing a gray rectangular label and a black background.
A metallic rectangle with rounded corners centered on a black background, with the word '-REED-' written underneath in stylized uppercase letters in black and green.

Specs

    • Awning ~ 2.9m Fiamma.

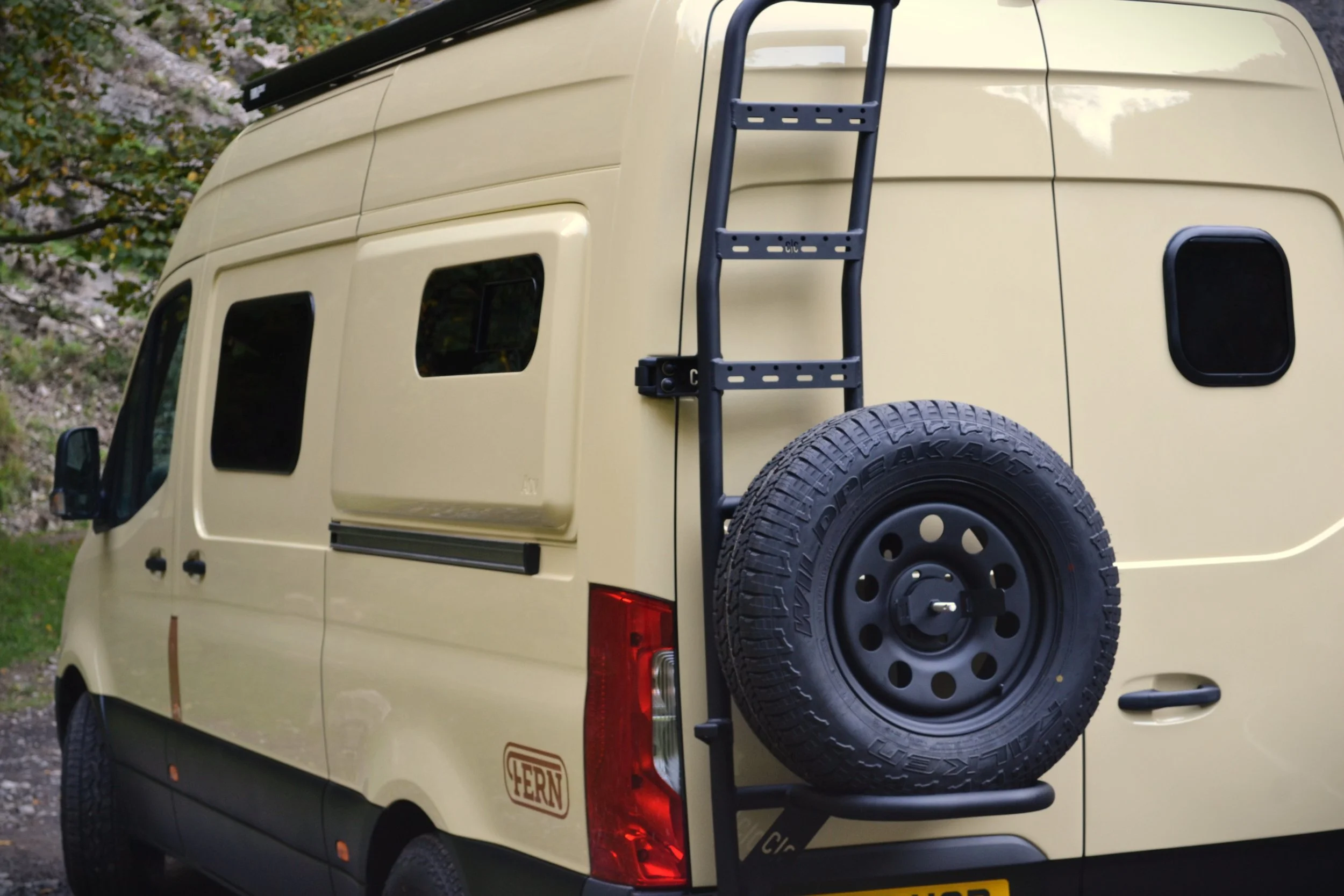

    • Ladder ~ external with spare wheel mount.

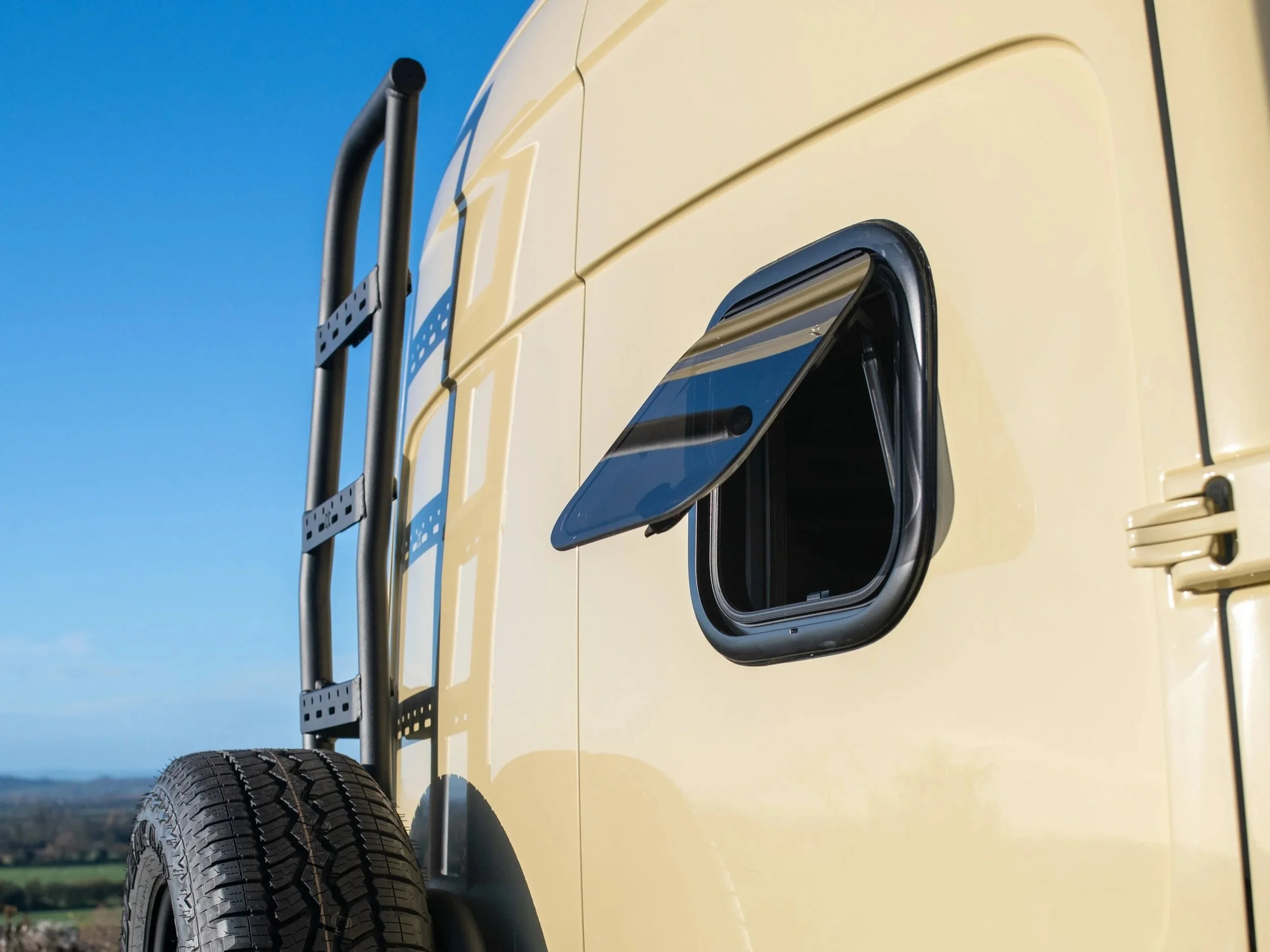

    • Windows ~ glass outer flush closing double glazed privacy, with blinds and fly screens.

    • Rear Window ~ double glazed opening privacy window, with blind and fly screen.

    • Water ~ external fill point.

    • Power inlet ~ external.

    • Side pods ~ insulated core with sliding windows.

    • Wheels ~ satin black with Falken all terrain tyres

    • Raptor black paint ~ on lower vehicle sections for increased protection.

    • Air heater ~ 4kW Autoterm air diesel heater.

    • Hot water system ~ Pundmann Therm Boiler 9L, 24V or 230V (when shore power is supplied).

    • Fresh water tank ~ 88L (inside to prevent freezing)

    • Grey water tank ~ 89L underslung.

    • Water level monitoring ~ fresh and grey water tanks.

    • Tap ~ garage access with hose connector.

    • Flooring ~ natural Cork.

    • Water pump ~ Shurflo Trail King.

    • Mattress ~ 6 inch Reflex and Memory Foam full size double.

    • Removable table ~ 69cm x 85cm (fully removeable for outdoor use).

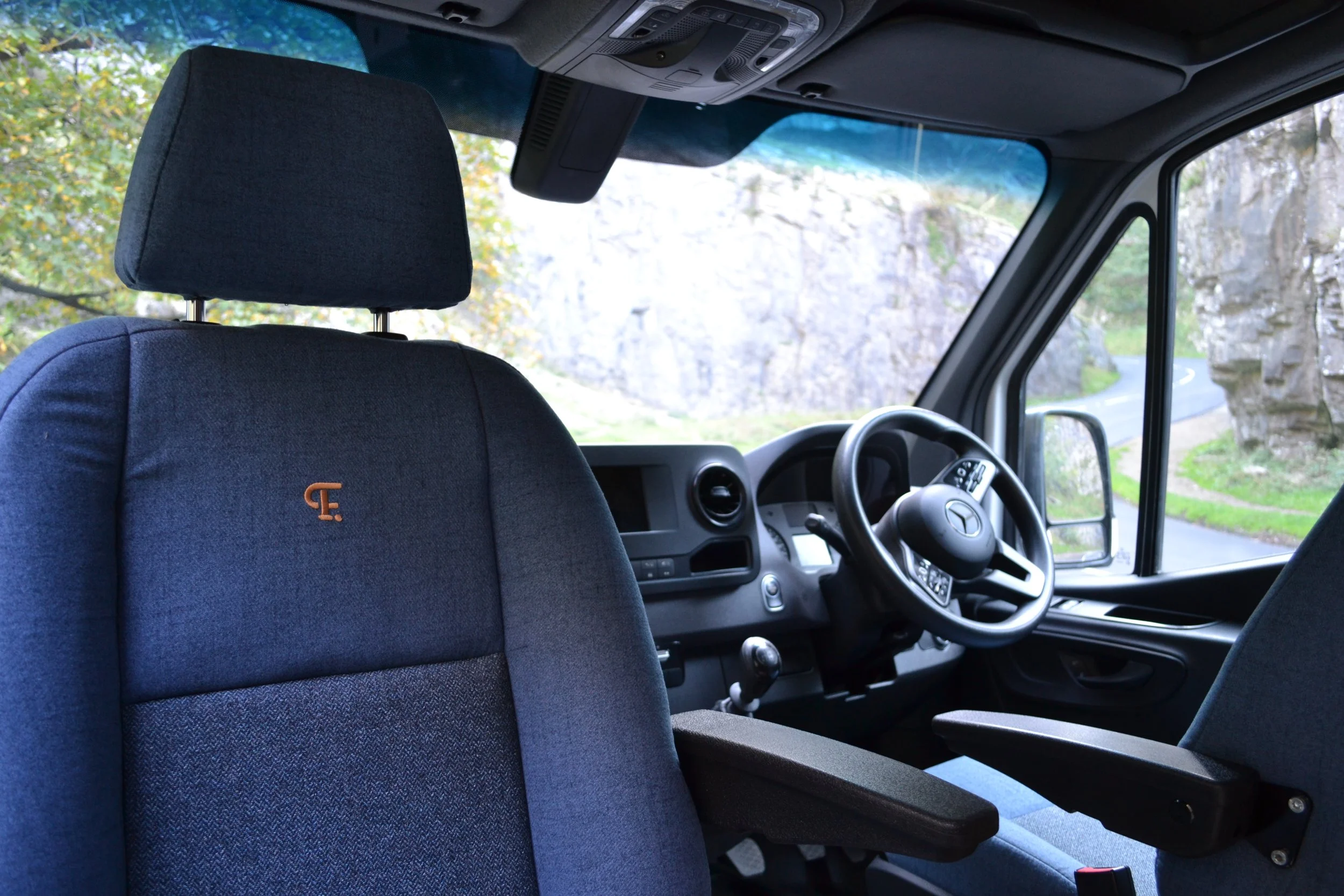

    • Custom upholstery ~ driver and Passenger seat.

    • Swivel seats ~ driver and passenger.

    • Shower ~ full size shower head.

    • Shower tray ~ 67cm x 67cm with removable base board.

    • Loo ~ draw mounted Trelino Evo M Composting, easy access to empty via garage.

    • Shower cubby ~ Storage for toiletries.

    • Cooking ~ Sterling twin induction hob.

    • Fridge ~ Vitrifrigo 85L fridge with Ice Box.

    • Storage ~ pull out larder, large cutlery & crockery draw, saucepan draw.

    • Waste ~ bin draw with recycling and waste compartments.

  • – Shower/Drying room ~ Maxxair MaxxFan Dome.
    – Living space ~ Maxxair MaxxFan Deluxe

    • Cab ~ large overhead cupboard.

    • Cabinets ~ five large storage cabinets with wine rack, bookshelf & lighting.

    • Garage ~ heated rear cargo area with kiwi cross storage solutions.

  • (Suitable for approx. 4 days without charging, indefinite with Solar, Shore and Driving):

    • Battery ~ Fogstar Drift 280Ah 24v LiFePO4. Equivalent to 560Ah at 12v.

    • Solar controller ~ Victron Energy SmartSolar MPPT 75/15.

    • Solar Panel ~ 440W Monocrystalline panel.

    • Inverter ~ Victron MultiPlus-II 3000W Inverter/Charger.

    • DC-DC charger ~ Victron Energy Smart Orion XS 1400 25A.

    • Insulation ~ full surround: floors, walls & ceiling.

      • 50mm Eurothane PIR Insulation Board.

      • Recycled polyester wool insulation in all remaining crevices and gaps

      • 38mm SIP insulated floor.

    • Sound deadening ~ 2mm vibration dampener throughout.

    • Vapour barrier ~ superfoil reflective membrane.

    • Furniture ~ birch ply with super hard wearing Hexa birch ply in garage area.

    • Laminate ~ select Interior locations with Egger laminate bonded to birch ply.

Our services

All work is undertaken on Medium Wheelbase Mercedes Sprinters, 2018 and newer. Conversion on Rear Wheel Drive (RWD) and All Wheel Drive (AWD) chassis only.

*All prices inclusive of VAT. Prices based on average market value of Mercedes Sprinters used/new and therefore subject to change.

Conversion Only

Starting at

£47,000

Used RWD

Starting at

£85,000

New rwd

Starting at

£116,000

new awd

Starting at

£130,000

Enquire about your campervan project
See our campervan builds available today

warranty

Every campervan we build here at Fern comes with a year’s warranty as standard and a 5 year parts warranty for the electronics system. We also offer one year’s additional mechanical warranty on used-chassis vehicles.

Custom EXTRAS

Exterior

Choose from:

  • Custom roof racks

  • Choice of exterior heritage colours (included)

  • Rear mounted storage solutions

  • Awnings (2.9m Fiamma Awning included as standard)

  • Window tint selection

  • Off-road and ‘All terrain’ tyres

INterior

  • Fabric selection for upholstery and curtains

  • Choose from over half a dozen different laminate finishes for your interior (included)

  • Garage drawer with sport-specific fittings

  • Customised Kiwi Cross storage for surfboards, kayaks, paddle boards, equine tack and many other types of active equipment.

4-Berth expansion

A new addition for 2026: a 4-berth version of our popular Fox model, the Fern Fox Quad.


Get in touch to discuss your campervan’s storage needs and how we can create the perfect space for you.

Enquire

What tO Expect

  • Enquire to discuss your project and preferences.

    Share your plans, budget, and how you’ll use the van. We’ll talk through our offering, timescales, and how we can make a Fern build the right fit for you.

  • Through thoughtful discussion and careful consideration, we’ll learn more about how you’ll use the campervan and what you need from it, allowing us to make recommendations for the ideal setup for you.

  • Personalise your campervan.

    Choose from our proven layouts and options, then we’ll confirm spec, colours and key upgrades together so everything is clear before we begin.

  • We will build and supply your campervan.

    We build your camper on a Mercedes-Benz Sprinter base, keep you updated with progress, then hand over the keys with a full walkthrough of every system.

  • Enjoy your newfound freedom.

    Head out on your first trip with confidence, knowing your Fern Campervan is ready for weekends, summer road trips and everyday adventures in-between.
